Tunnel slides

Fancy a stainless-steel tunnel slide?

Choose one of our existing designs in our catalogue or let us produce a custom slide just for your project.

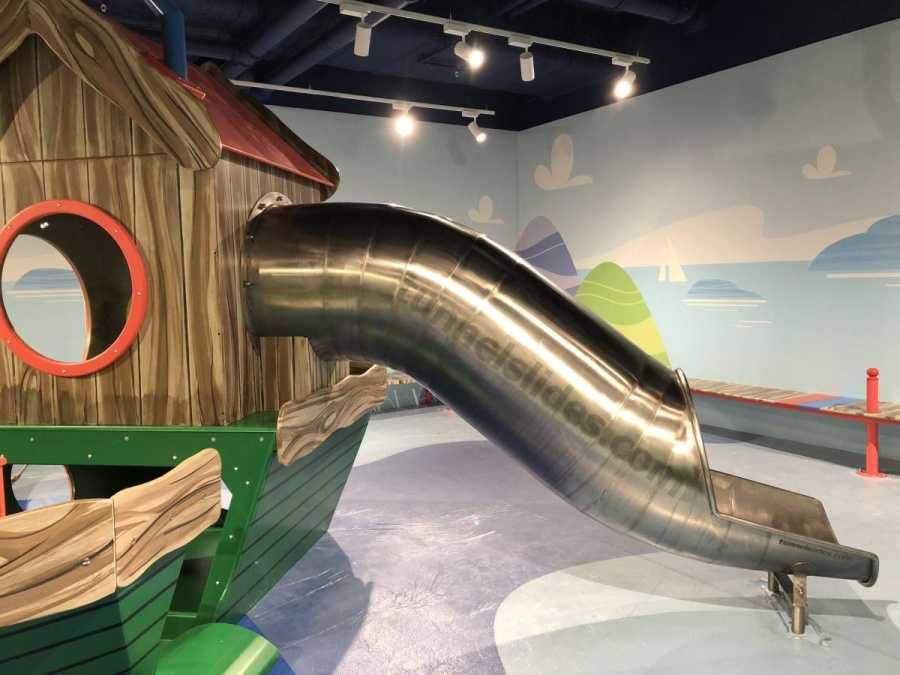

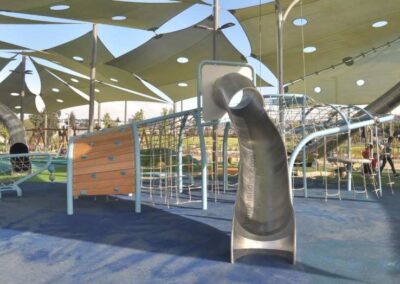

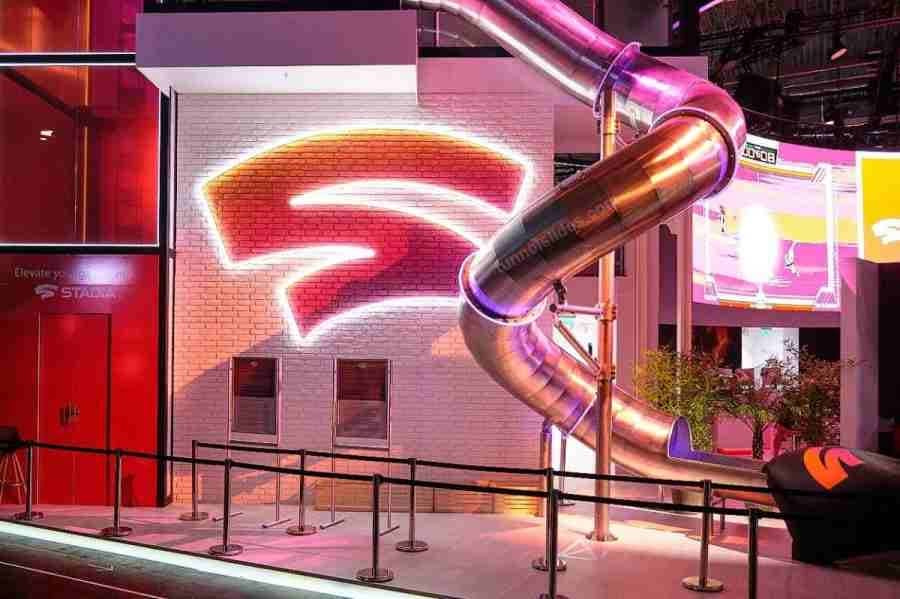

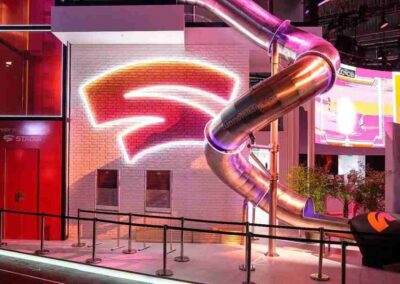

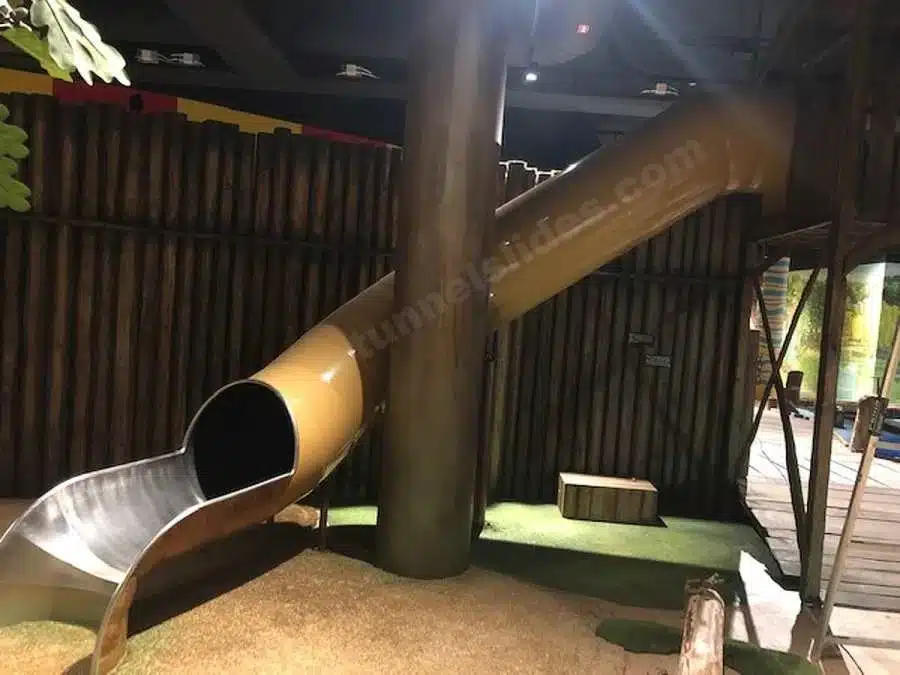

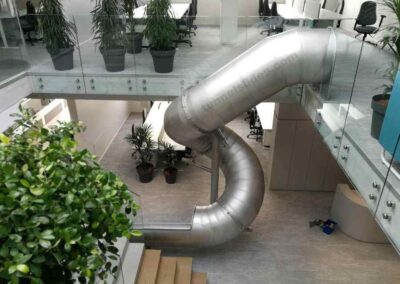

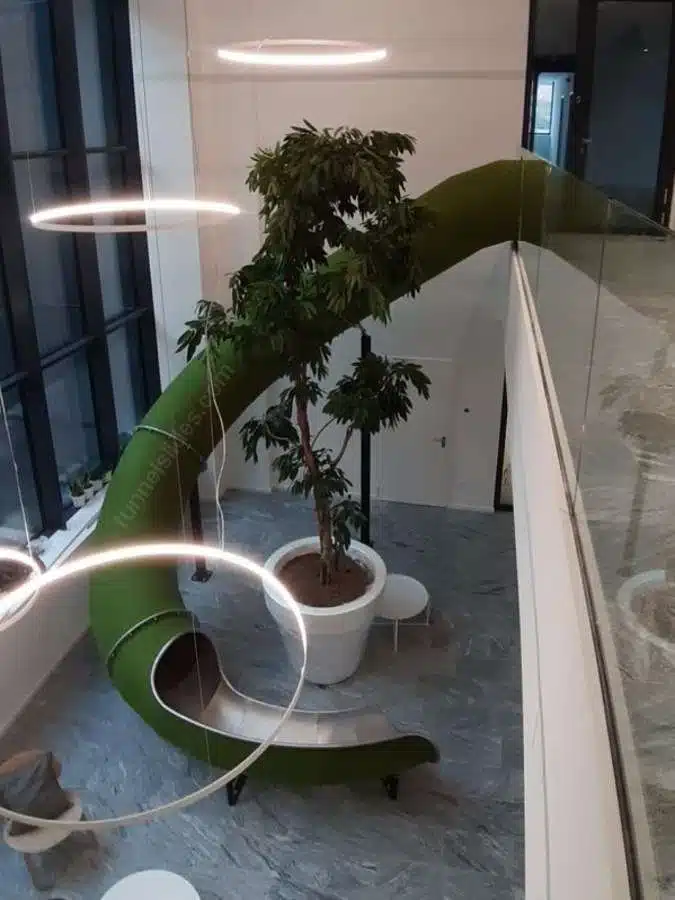

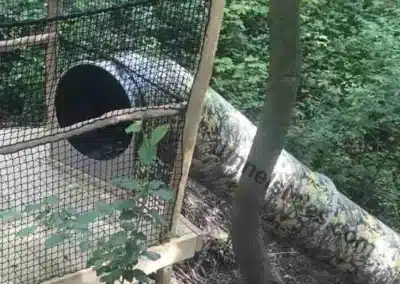

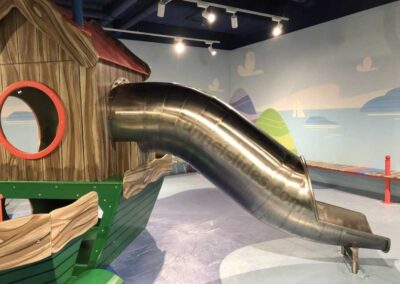

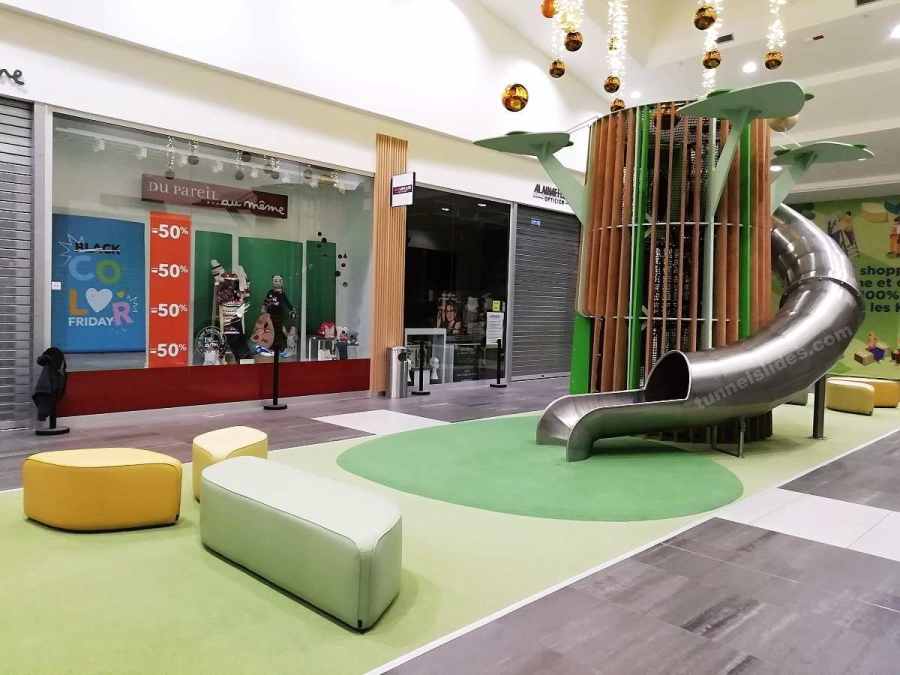

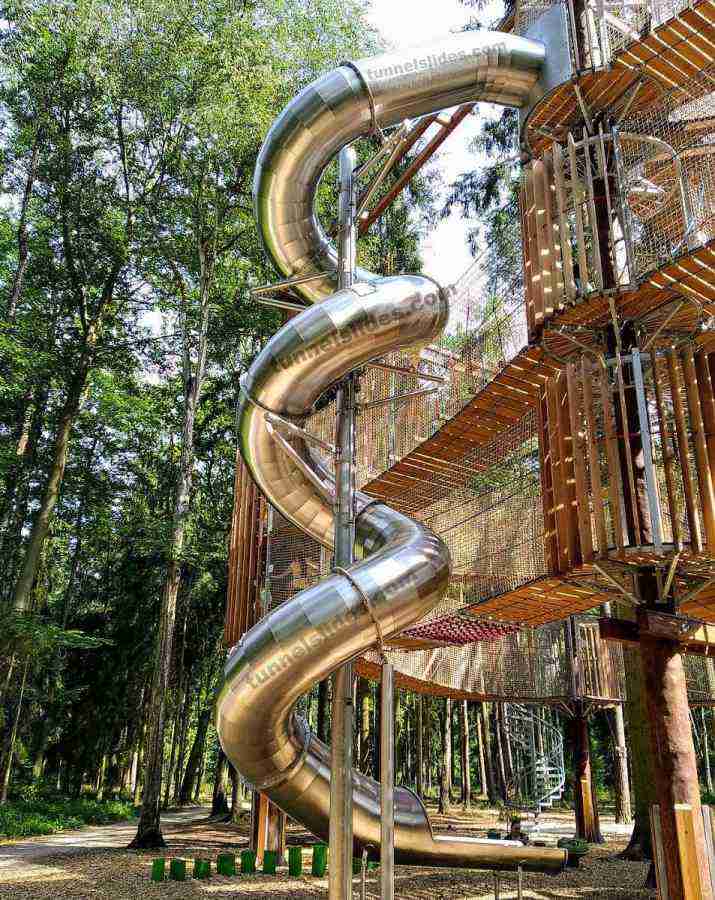

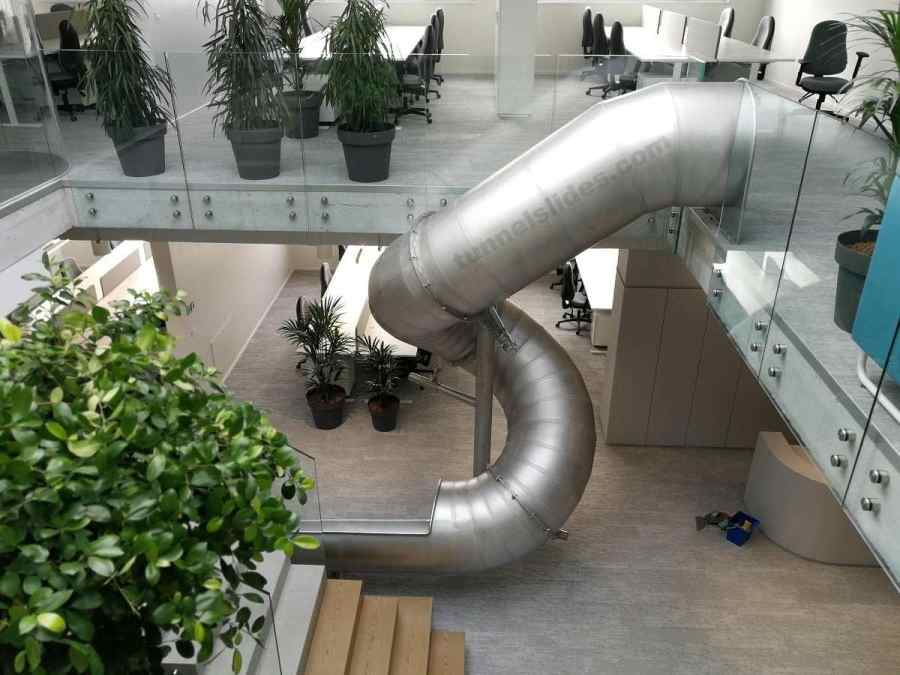

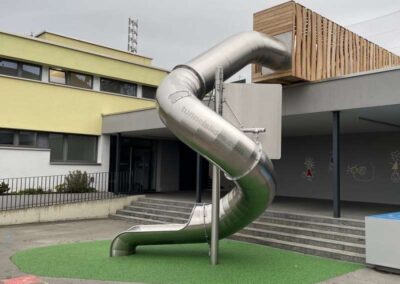

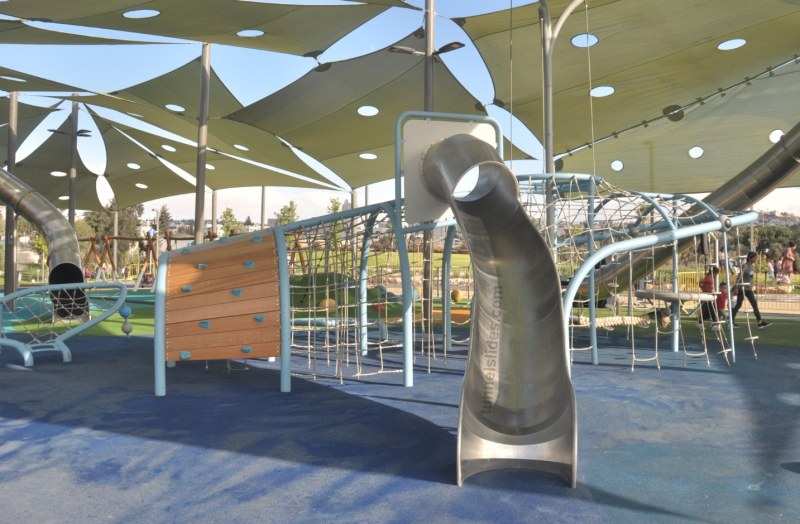

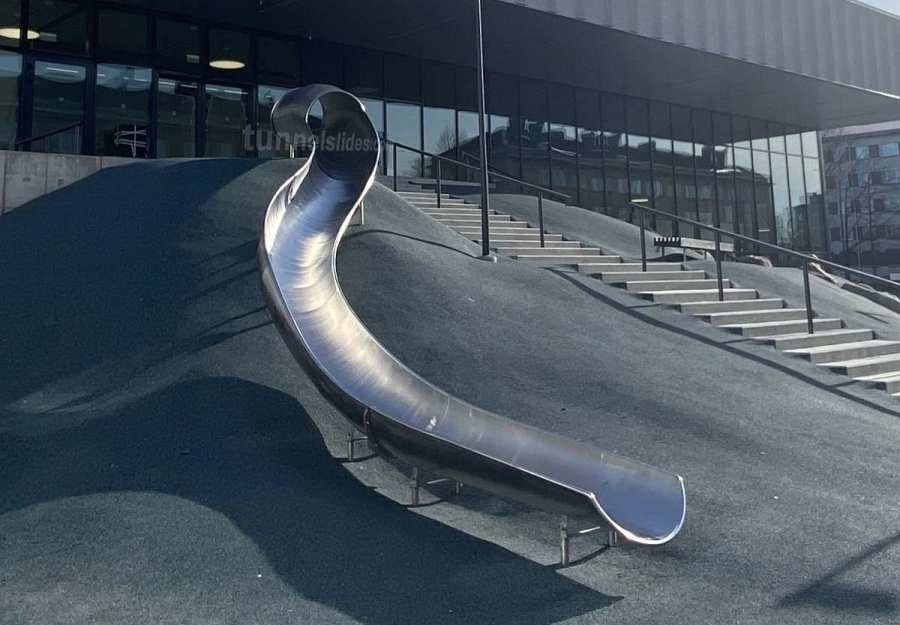

Explore some of the implemented projects:

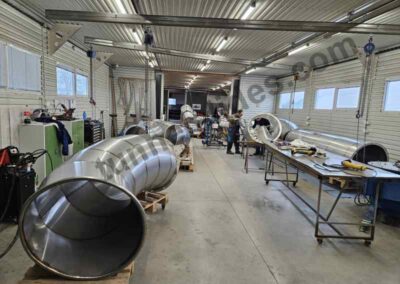

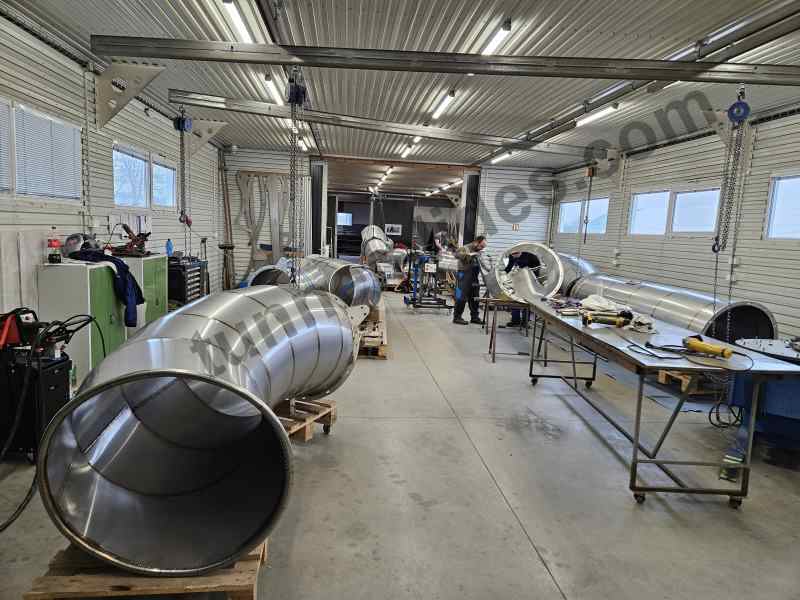

How do we do it?


Thanks to the production technology and final surface treatment, our stainless-steel tunnel slides and tube slides have an unlimited lifespan.


  • TOP welding quality exclusively by TIG (WIG) method

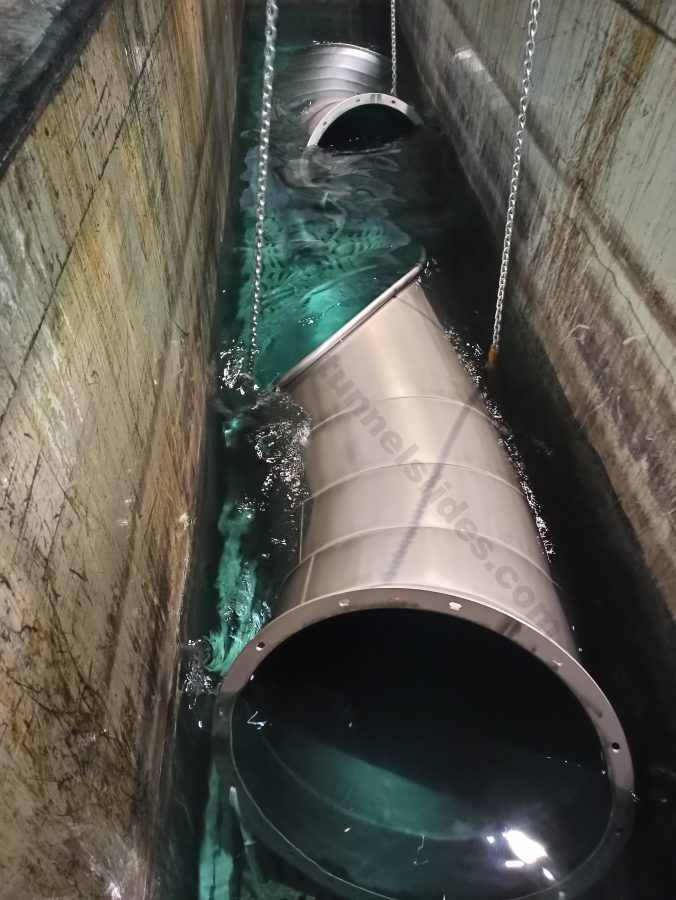

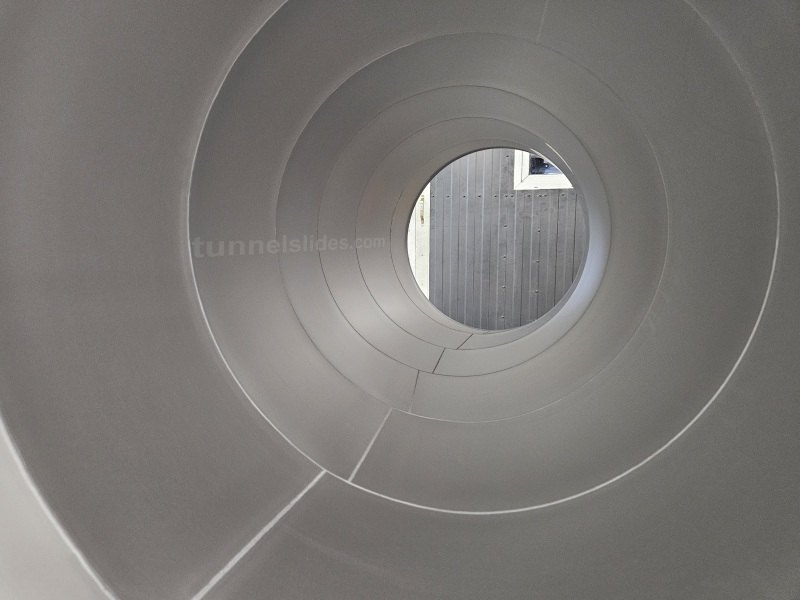

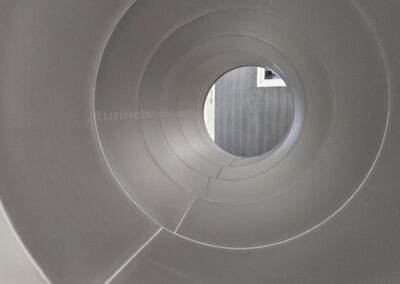

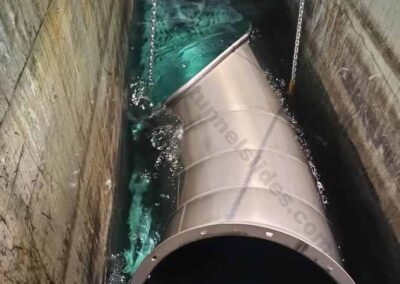

  • pickling + passivation + preservation of the entire slide = unlimited lifespan
  • if required, we also offer manual polishing and conservation of the slide

What are the design options ? All ….

Basic parameters of our stainless-steel Tunnel slides (tube):

  • Material: food grade stainless-steel, grade 1.4301 (AISI 304)
  • Sheet thickness: 2,0 mm (0,078 in) / (2,5 mm / 0,098 in on demand)
  • Connecting flanges: stainless-steel, thickness 8 mm (0,315 in)
  • Construction elements: stainless-steel
  • Fasteners: stainless-steel
  • Inner diameter: 790 mm ( 31,1 in)

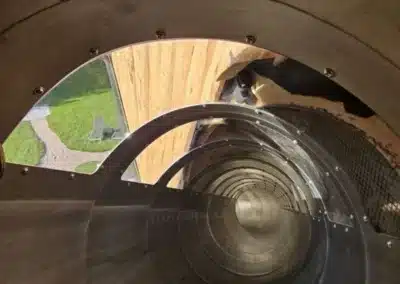

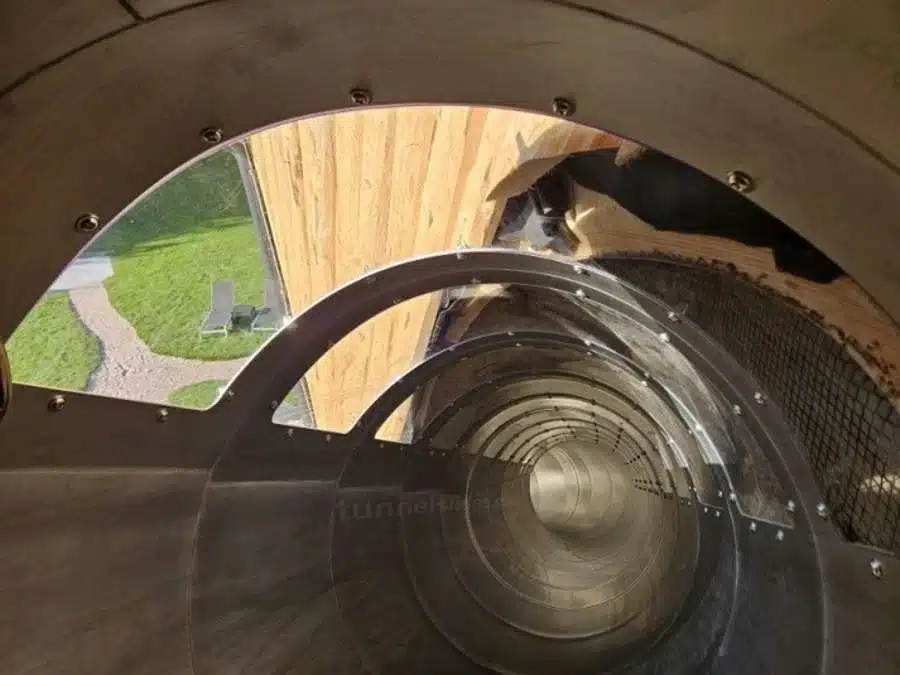

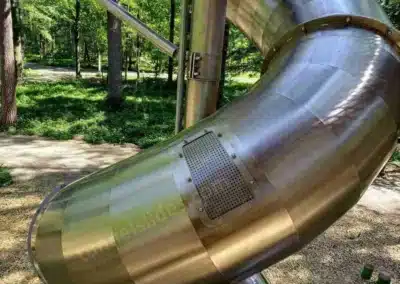

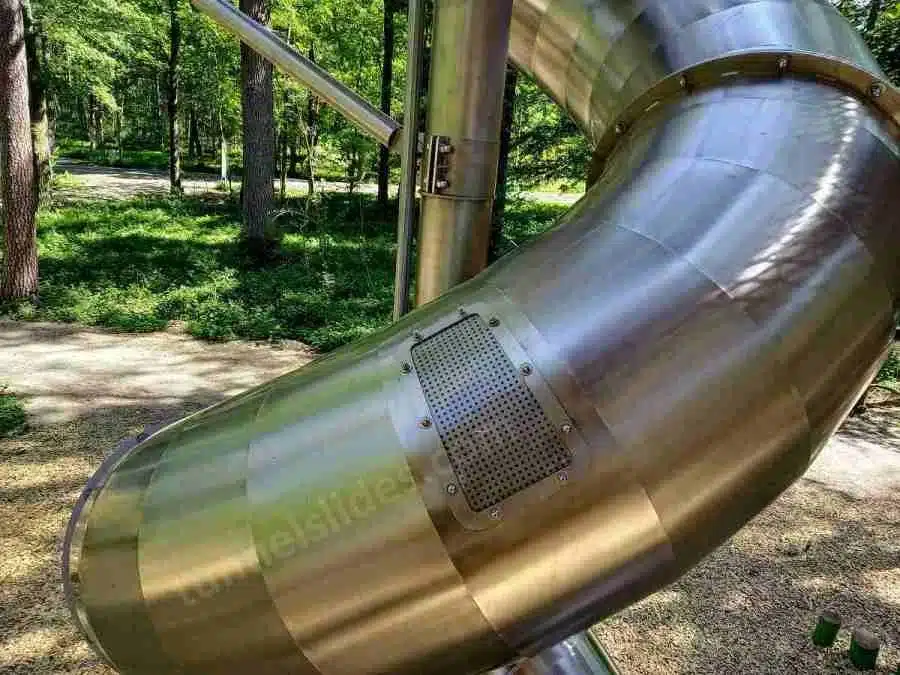

  • Windows to bring light in (on deman)
  • Length of the slide depends on the platform height (ideal inclination 34°)

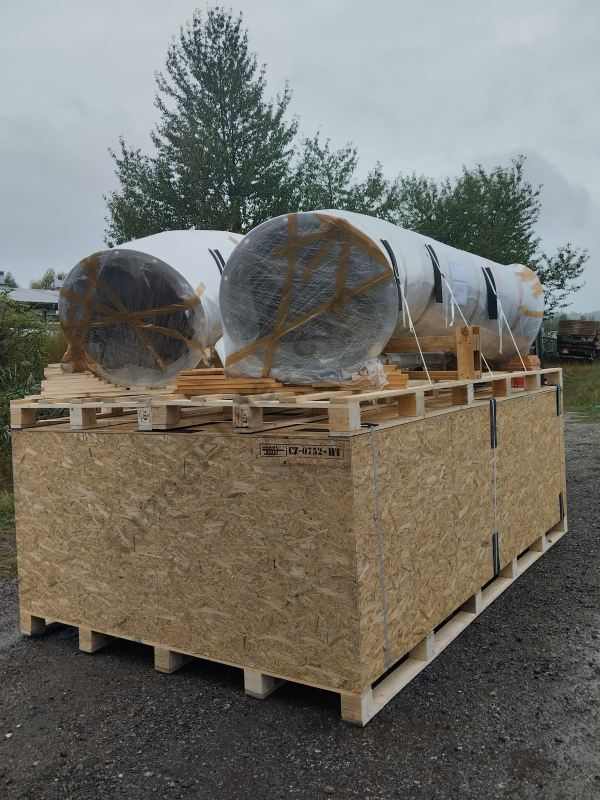

  • Longer slides are divided into segments to facilitate handling and installation
  • TOP quality in all details – welded exclusively by TIG (WIG)technology
  • Certified by TÜV for compliance with EN 1176-1 and EN 1176-3

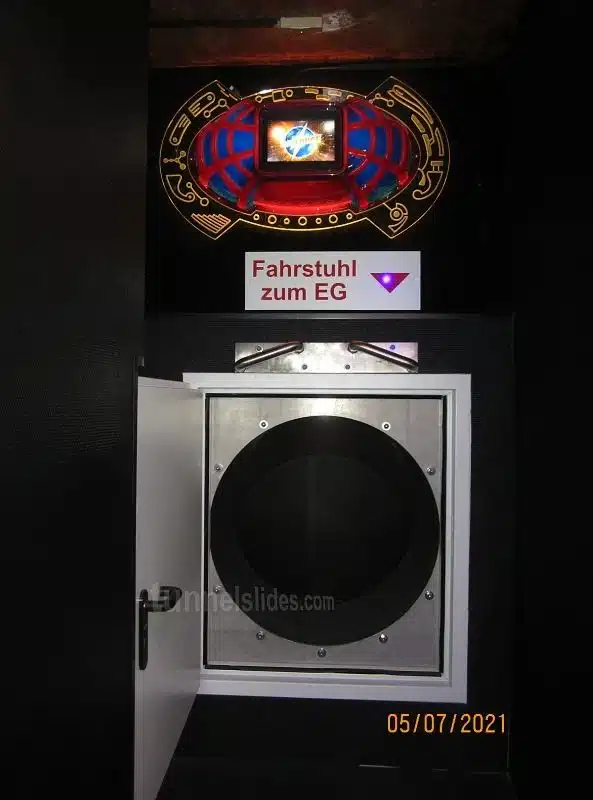

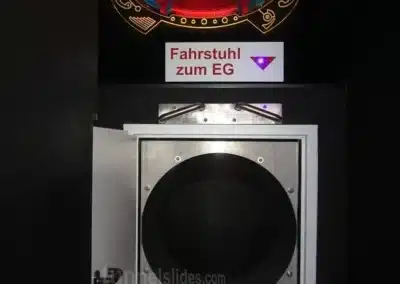

Entry sections of our stainless-steel Tunnel slides (tube) can by easily fixed to:

  • balcony doors
  • windows
  • railings (e.g. fire staircases)
  • rope elements
  • playground elements
  • children’s houses
  • .. and many more, according to your needs

Ready for a Tunnel slide?

Let us know details of the slide of your dreams. We will get back to you shortly with an indicative offer.

Please enable JavaScript in your browser to complete this form.
Illustrative image, explanation
Select a shape
Select start type

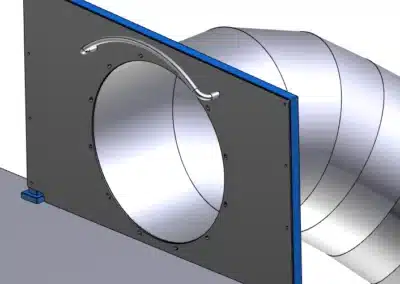

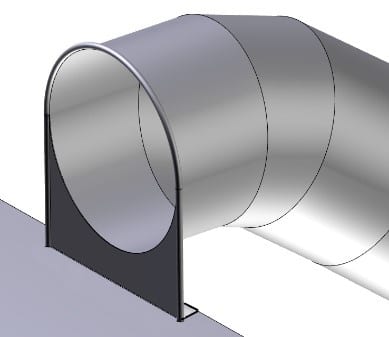

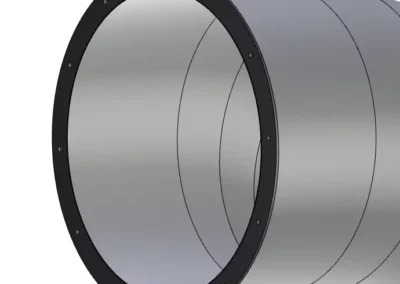

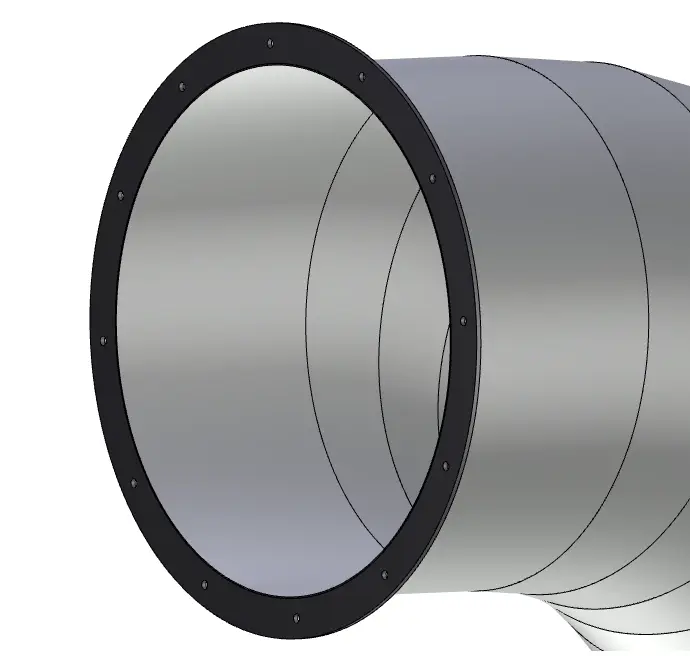

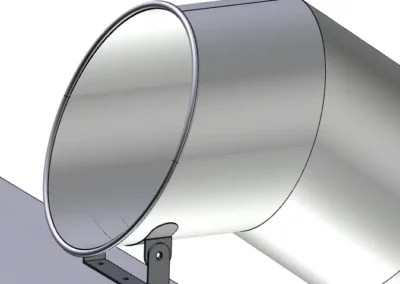

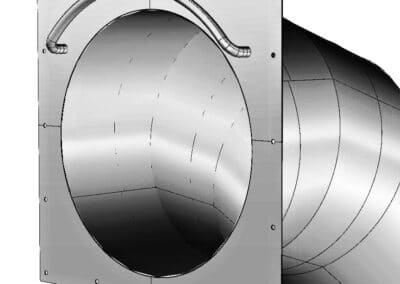

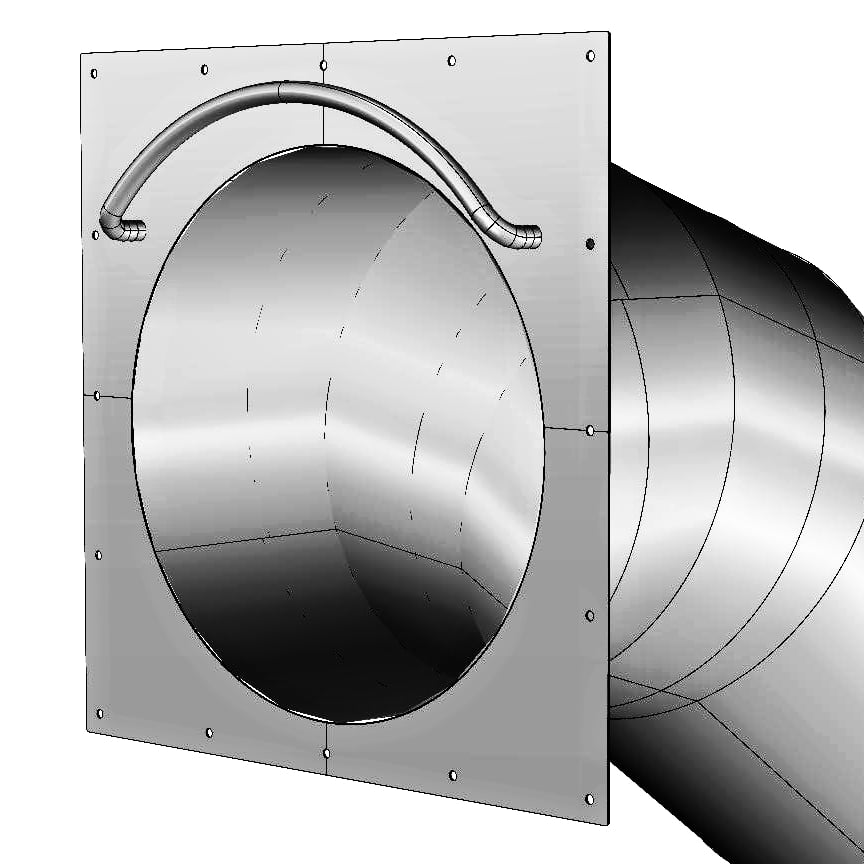

Type A: 2 segments: plate with a handle + connection flange. Type B: welded plate with a handle Type C: rim serves as a handle, angle 65° Type D: rim serves as a handle Type E: connection flange
Select landing type

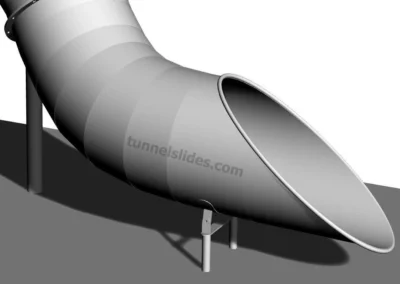

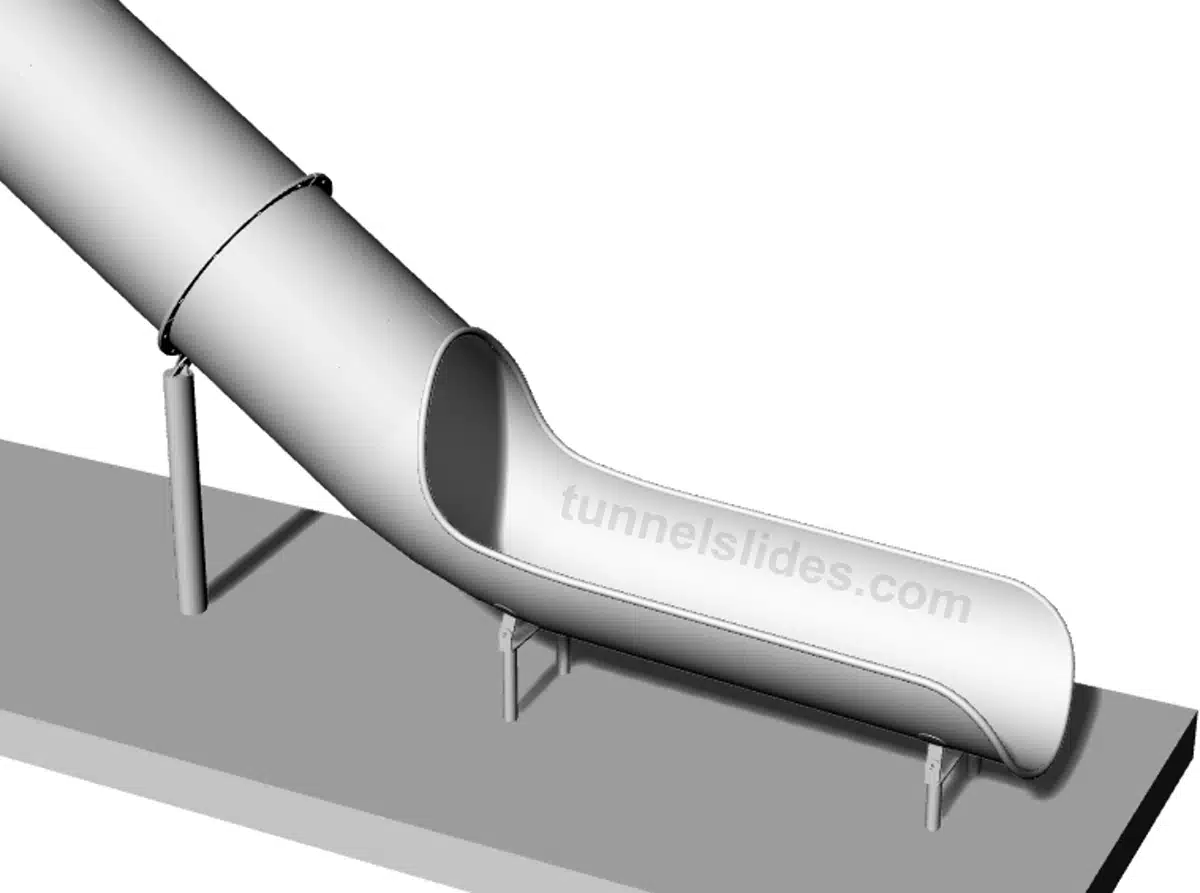

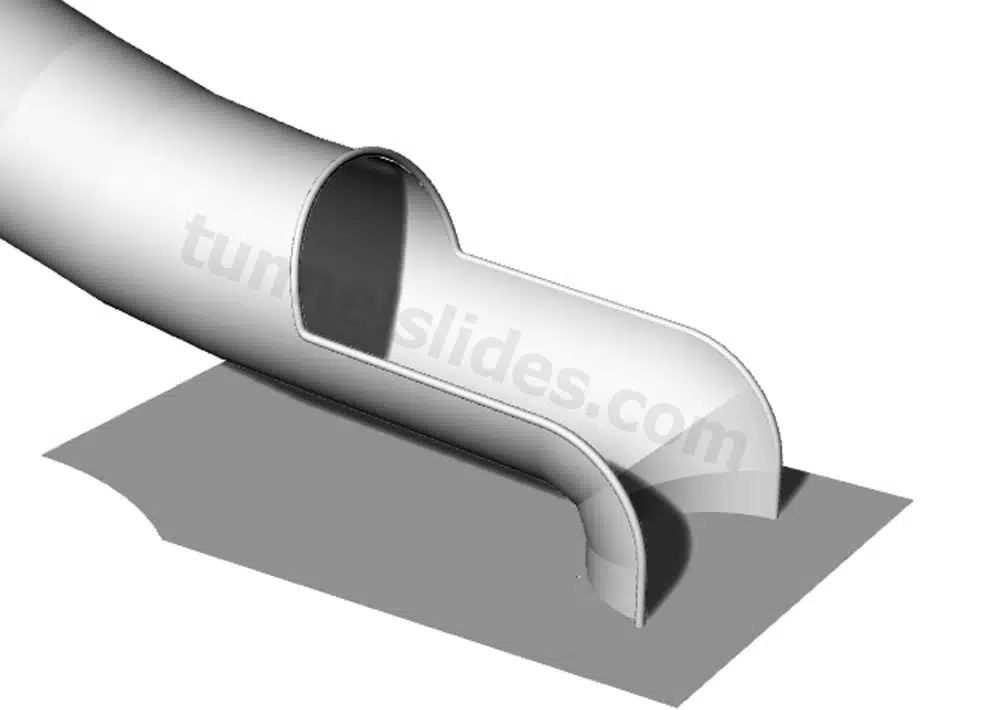

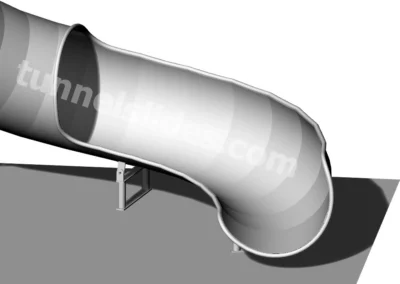

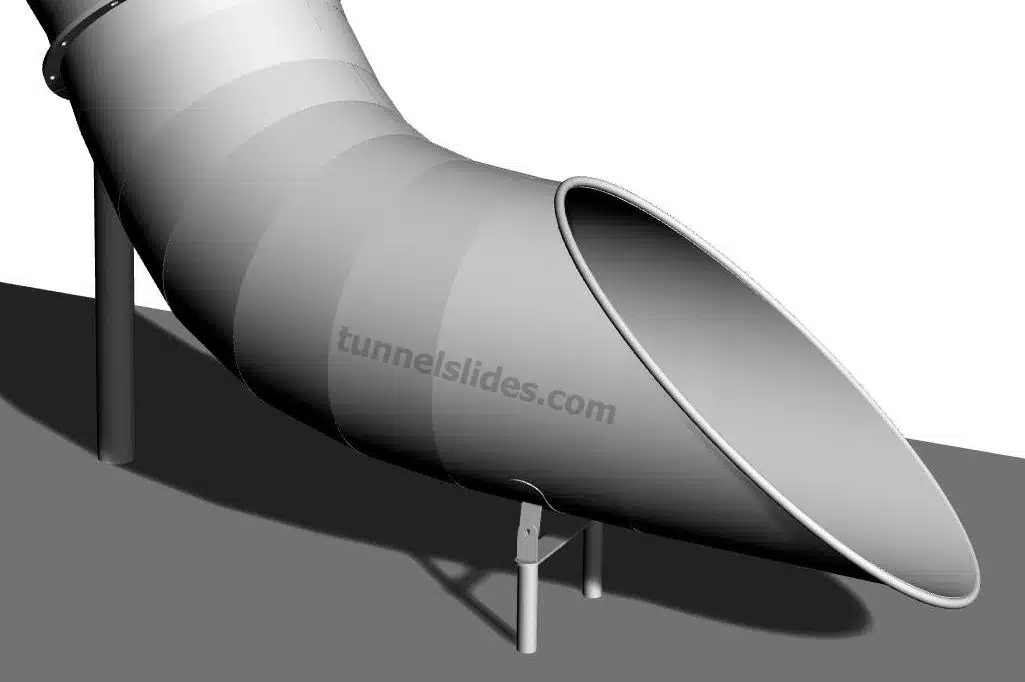

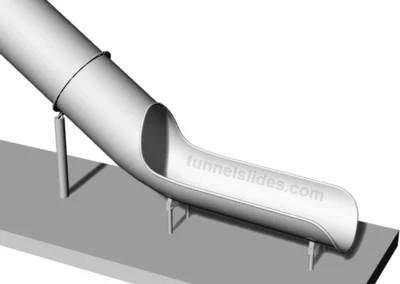

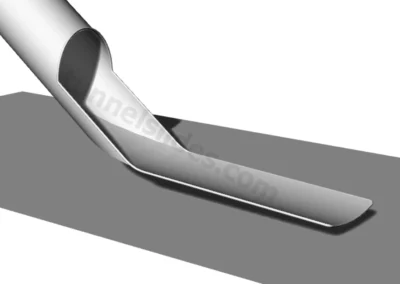

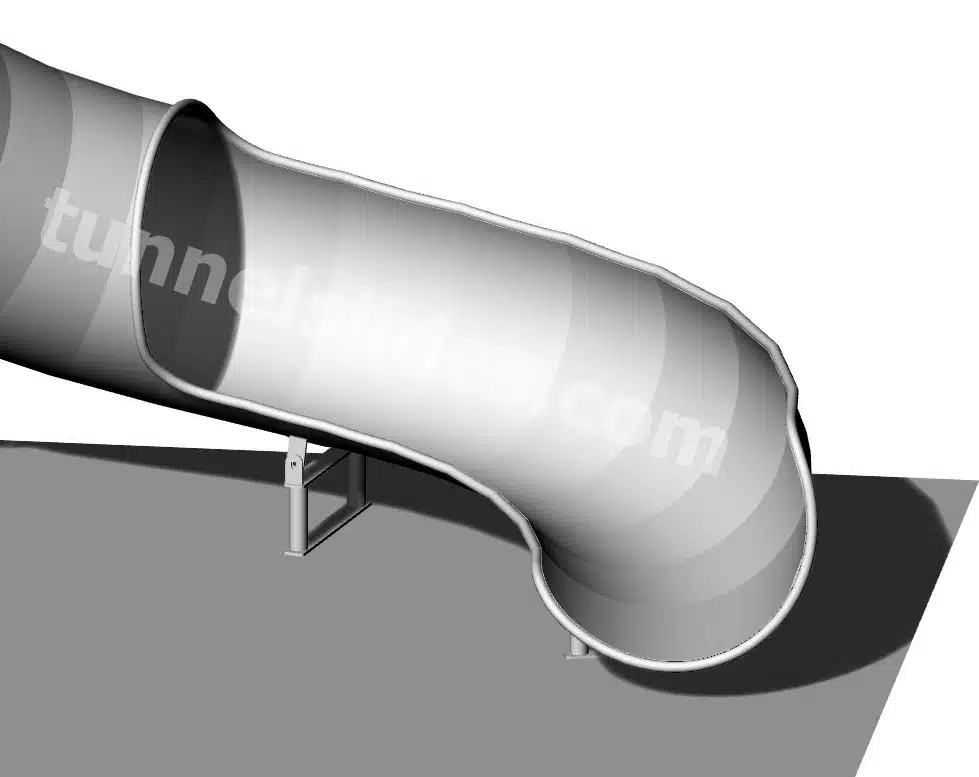

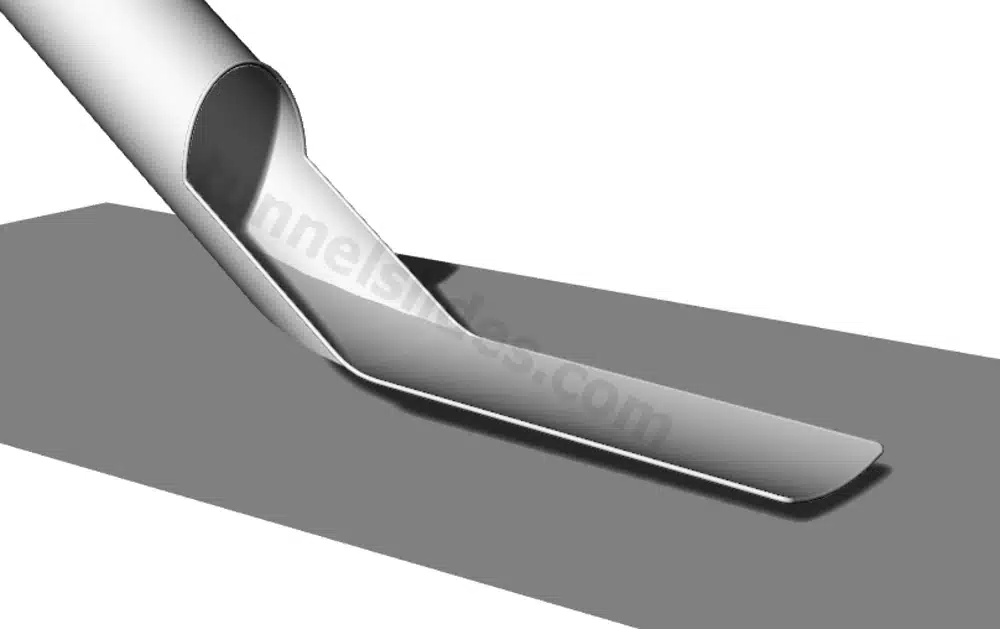

Type A (standard): straight, U-shaped Type B: flat “shovel” Type C: curved with raised sides Type D: oval, beveled Type E: straight, anchored in the ground
Click or drag files to this area to upload. You can upload up to 5 files.

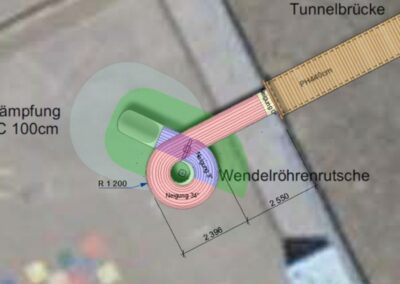

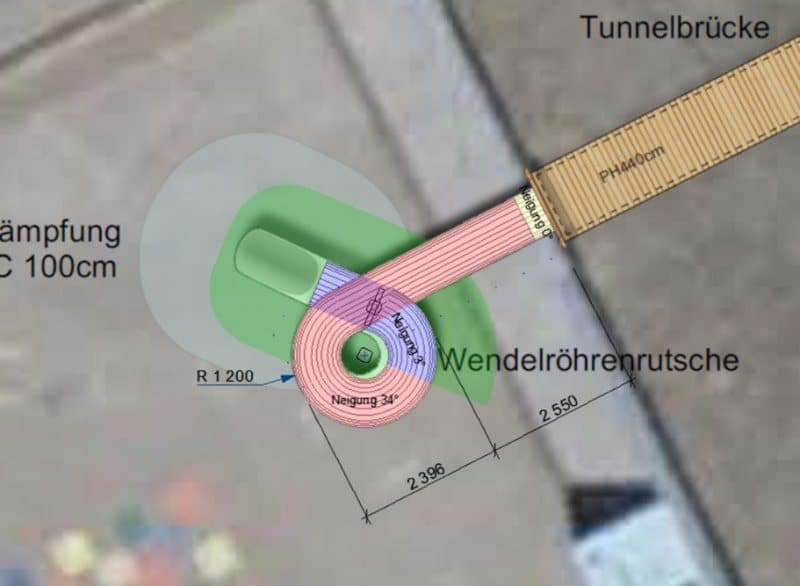

Here you can upload photos from the place of installation, drawings and/or sketches with basic dimensions, so that we can prepare an offer specifically tailored to your needs.
Personal data: We process your above personal data solely for the purpose of processing of the requested offer. We do not further process or archive your personal data for marketing or other purposes.

Catalogs of slides, tunnel slides or water slides.

Here you can choose the shape, height, curves ….
