Embankment and curved slides

Check-out our embankment curved slides TREND

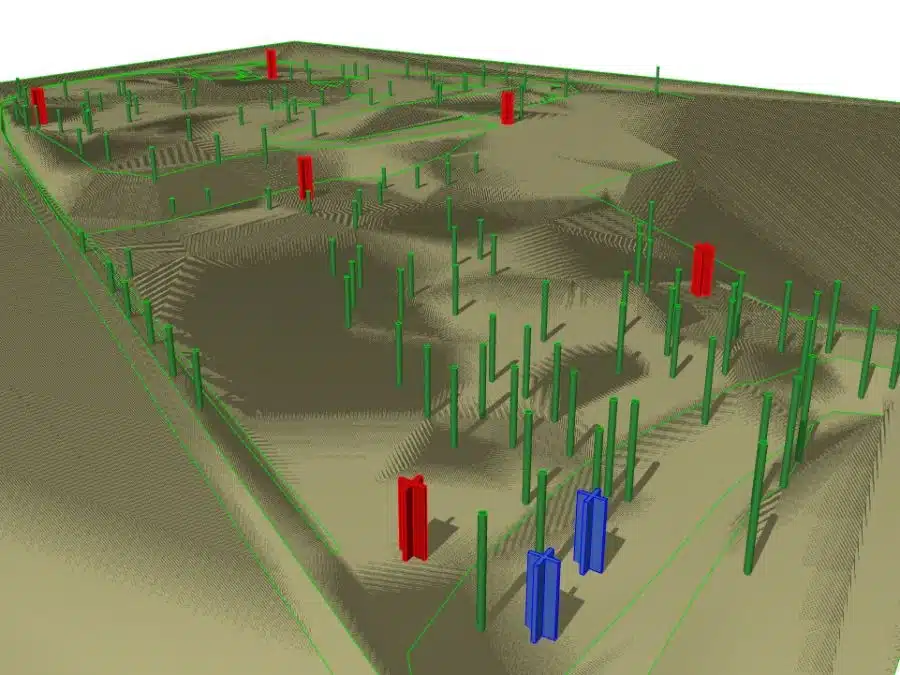

Our curved embankment slides Trend with “U”-shapped cross-section can be customized and modeled according to customer’s specific requirements and local conditions, such as the shape and length of the hill.

Trend is perfect as a hill-slide or slope slide.

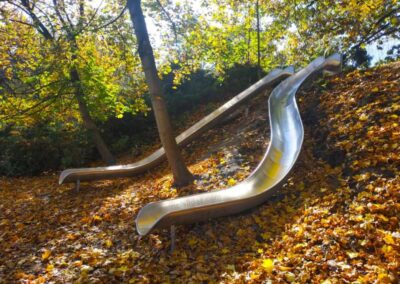

Metal slide for playgrounds PH 4 m with curve 2x60°, PH 3,5 m direct
Stainless steel slides PH 2,65 m

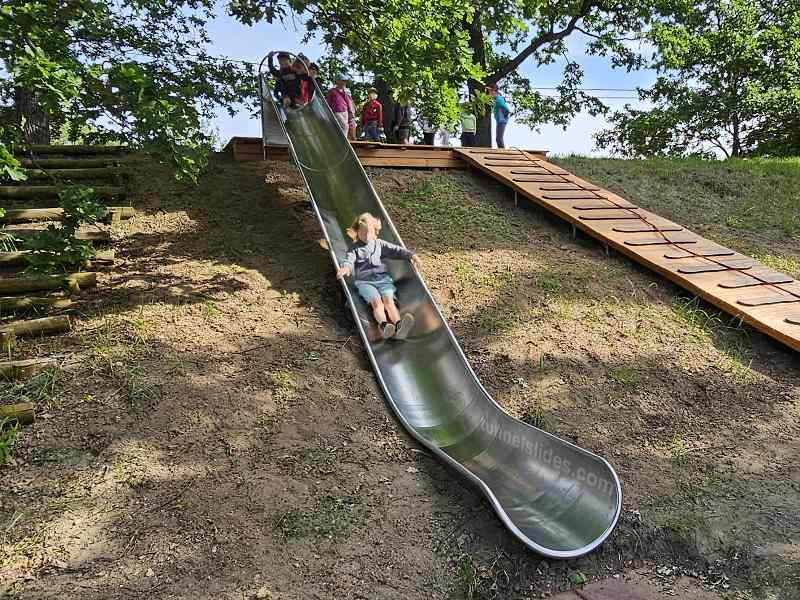

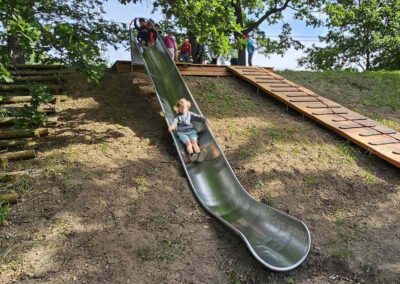

Embankment stainless steel slide

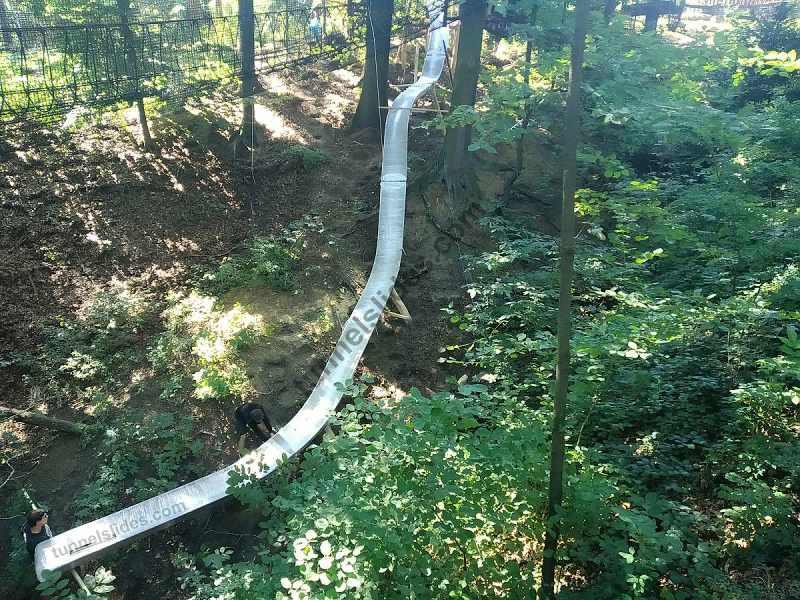

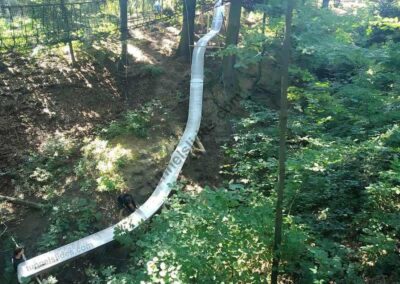

Curved slides with wave PH 10,15 m

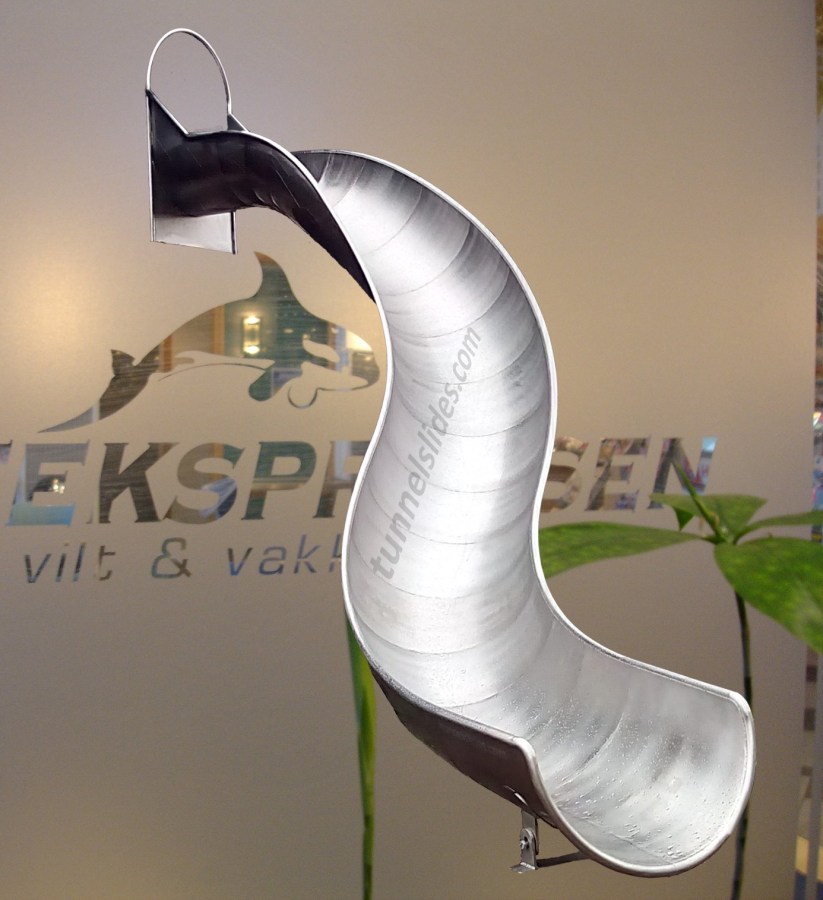

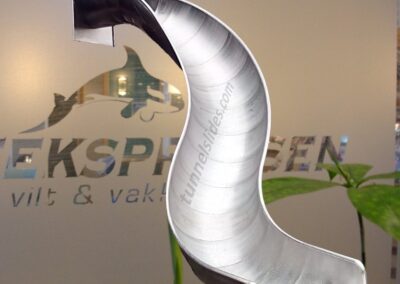

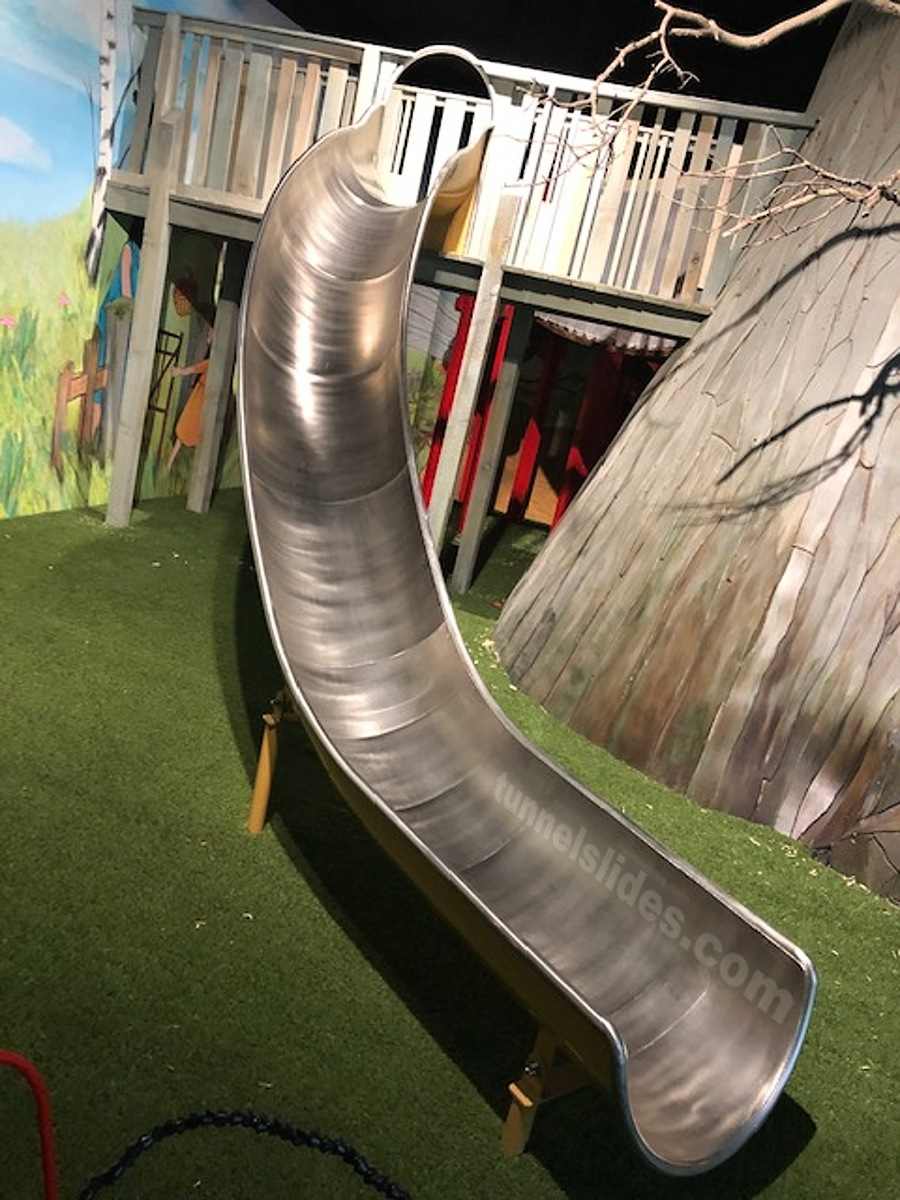

Curved slide 45° and 70°, PH 2 m
Embankment slides PH 3,7 m
Embankment curved slide, PH 5,5 m

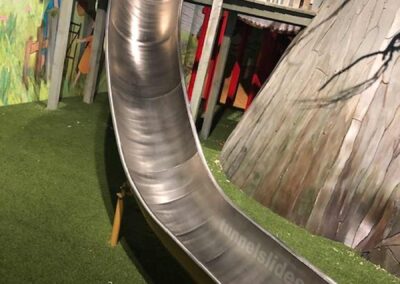

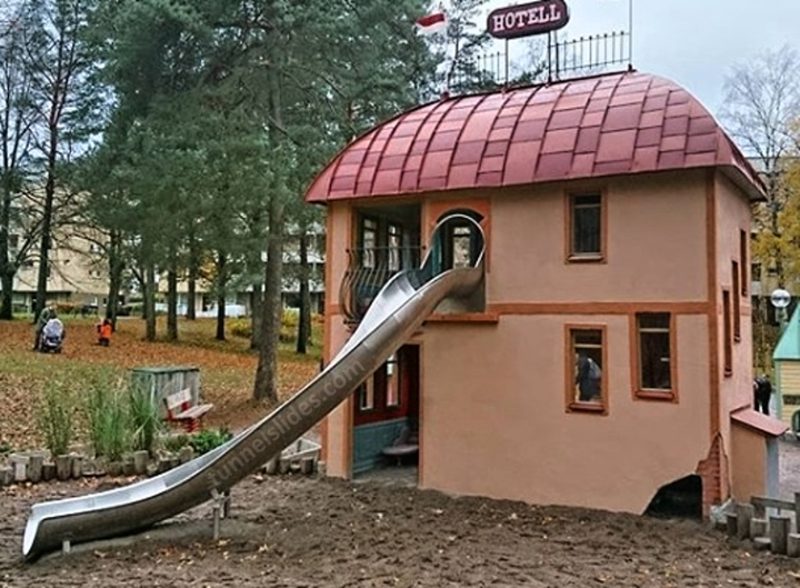

Curved slide for children's house PH 2 m_45° and 60°
Embankment curved slide PH 8,5 m_90°

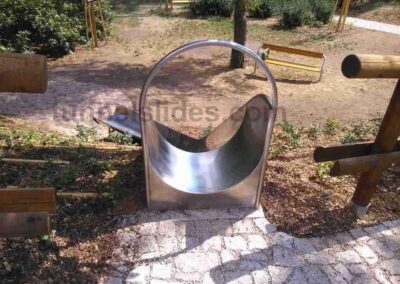

Curved steinless steel slide PH 3,15 m_30°
Curved slides for playgrounds PH 2 m

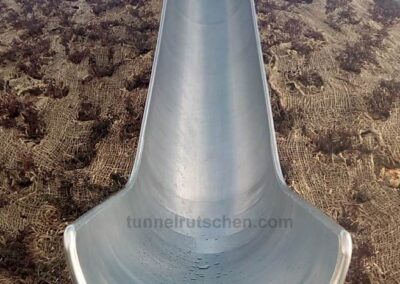

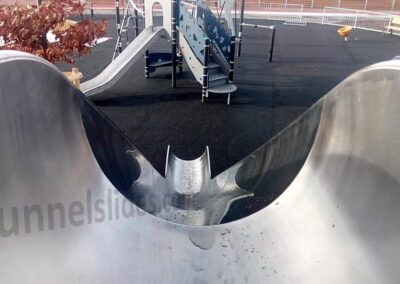

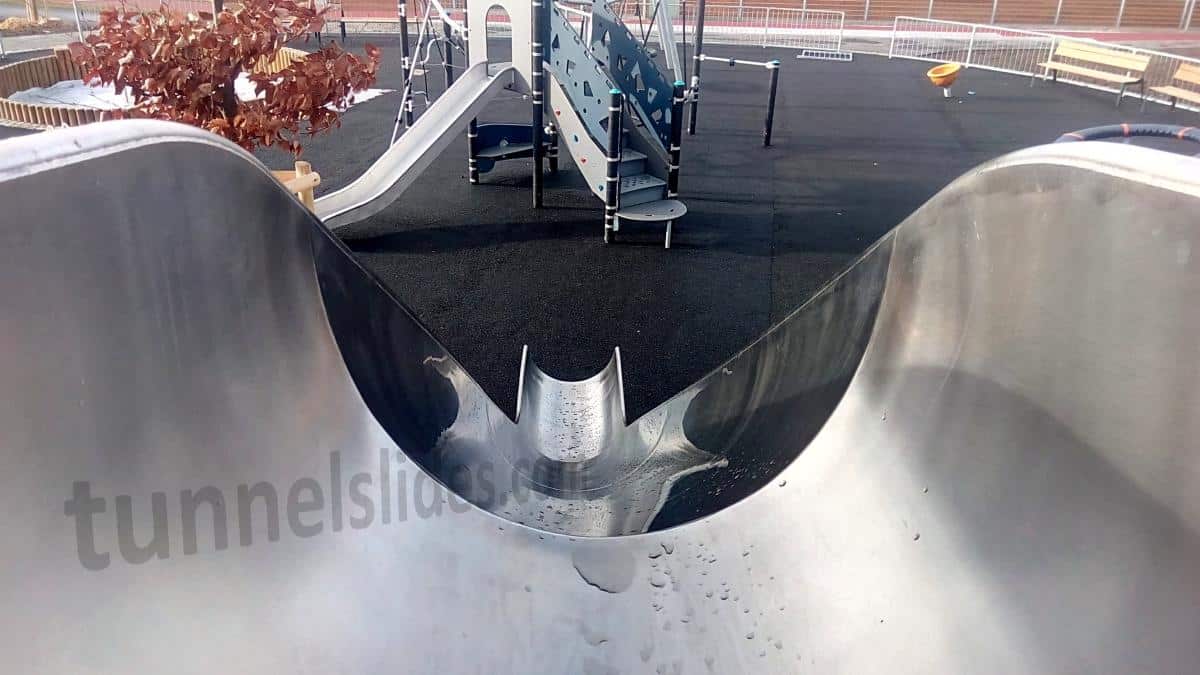

Embankment slide TREND, direct, PH 3 m
Embankmend slide for playgrounds PH 3,5 m
Curved slides for playgrounds PH 2 m
Metal embankment slide PH 2,65 m

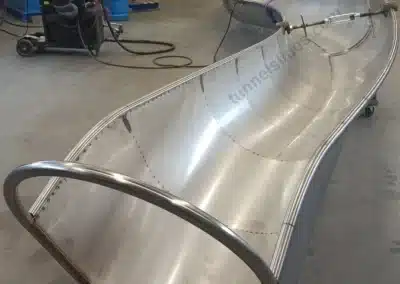

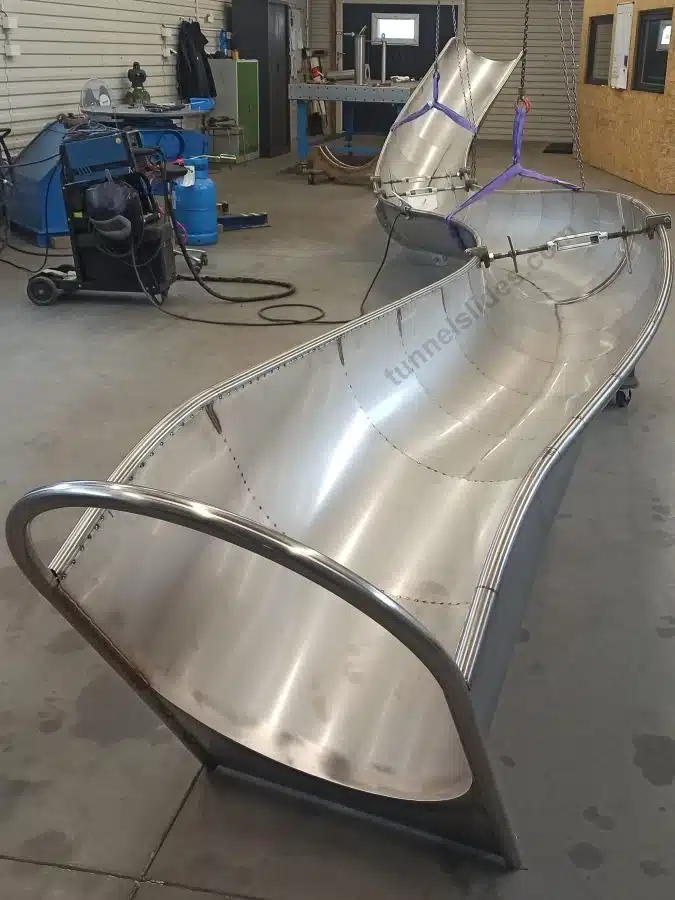

How do we do it?



Thanks to the production technology and final surface treatment, our stainless-steel embankment slides and curved slides have an unlimited lifespan.

  • TOP welding quality exclusively by TIG (WIG) method
  • pickling + passivation + preservation of the entire slide = unlimited lifespan
  • if required, we also offer manual polishing and conservation of the slide
Embankment slide, TOP welding quality.

Embankment slide, TOP welding quality.

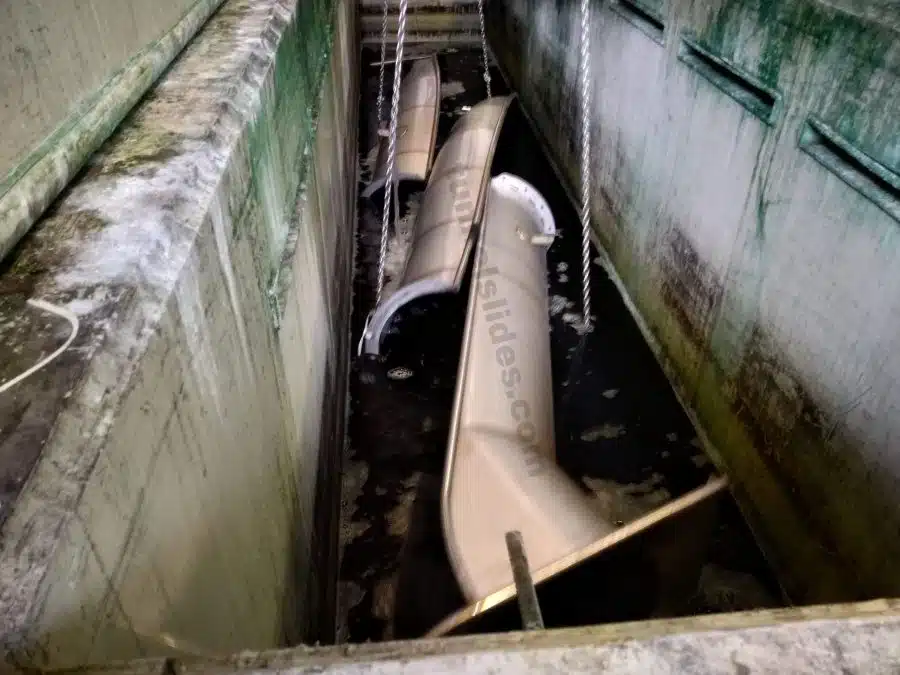

Curved slide, pickling + passivation.

Curved slide, pickling + passivation.

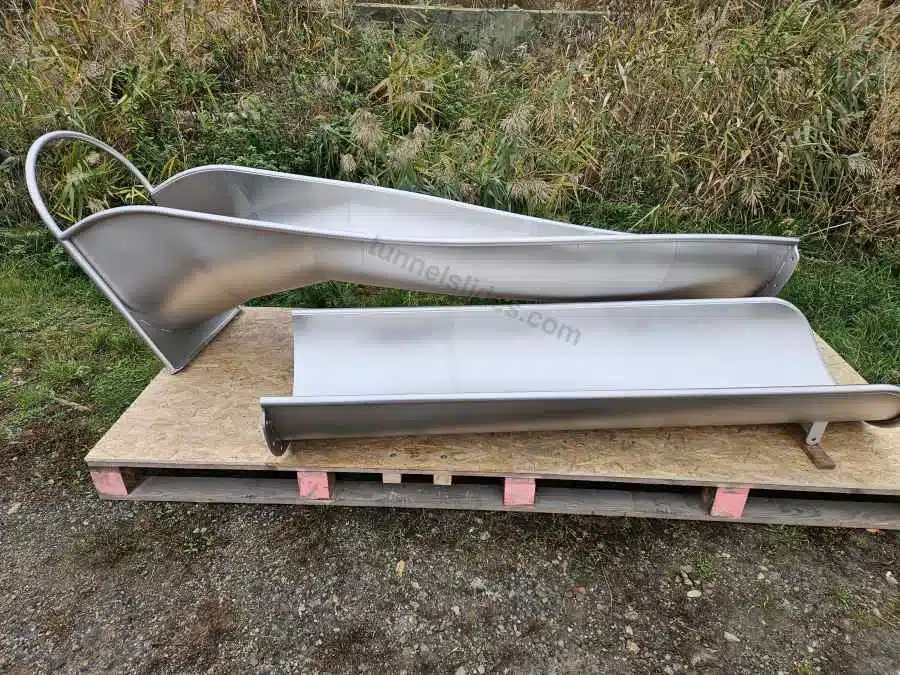

Embankment slide, passivation.

Embankment slide, passivation.

Embankment slide, hand polishing.

Embankment slide, hand polishing.

Preservation of curved slide.

Preservation of curved slide.

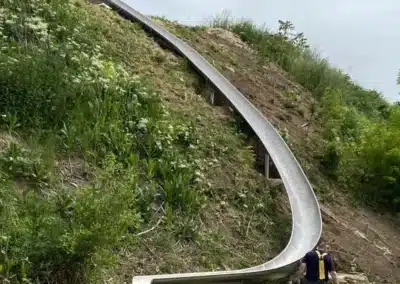

Endless slide

We have developed an original solution for connecting individual parts of hill slope slides.

Thanks to sophisticated connection of flanges of individual subassemblies of the slide, it can continue almost indefinitely.

TÜV certification is a matter of course for us.

Long curved metal slide.

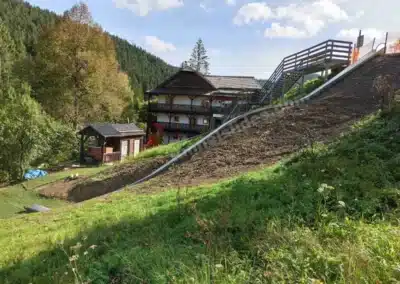

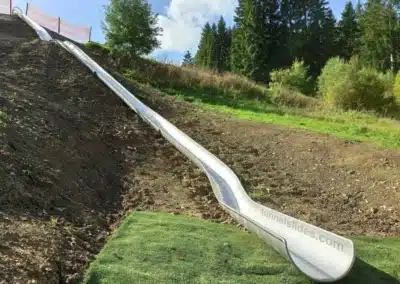

Endless slide with curve and wavy.
Landing part of long embankment slide.
Embankment curved slide with flanges.

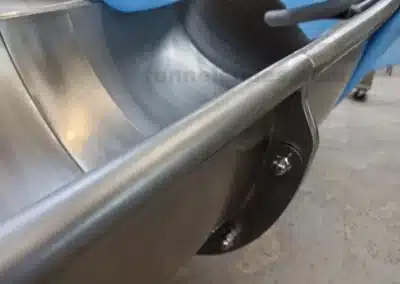

Long curved slide, connecting flange.
Curved long slide, flanges.
Stainless steel embankment slide in forest.

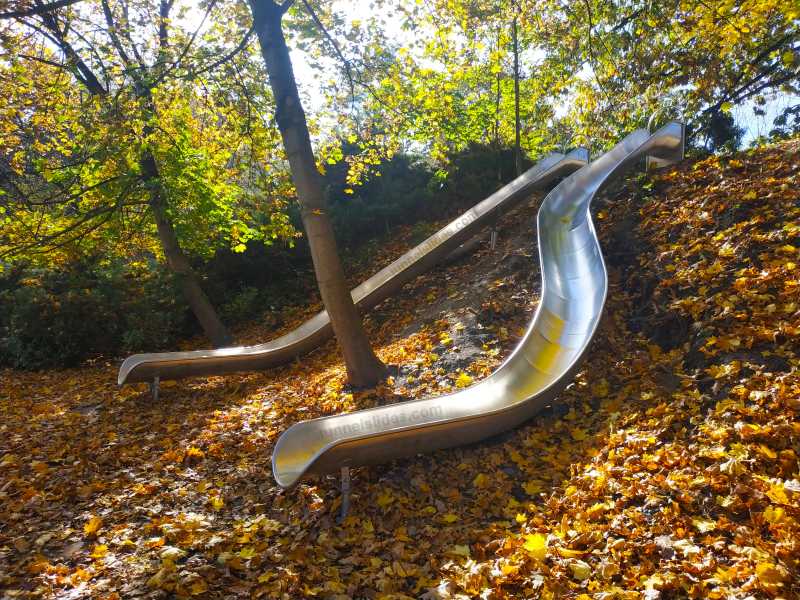

Steel curved slide with wavy in forest.
Embenkment curved slide.
Wavy curved long slide.

Our stainless-steel embankment curved slides Trend allow for universal use.

Examples of possible application:

  • playground assemblies and rope elements
  • direct installation on the terrain
  • installation on the terrain with a wooden platform
  • balconies, stairs
  • rocks

Basic parameters of our stainless-steel curved slides TREND:

  • Width 600 mm (23,62 in)
  • U-shaped cross section for additional safety
  • The slide is tilted in turns for additional safety – like a bobsled

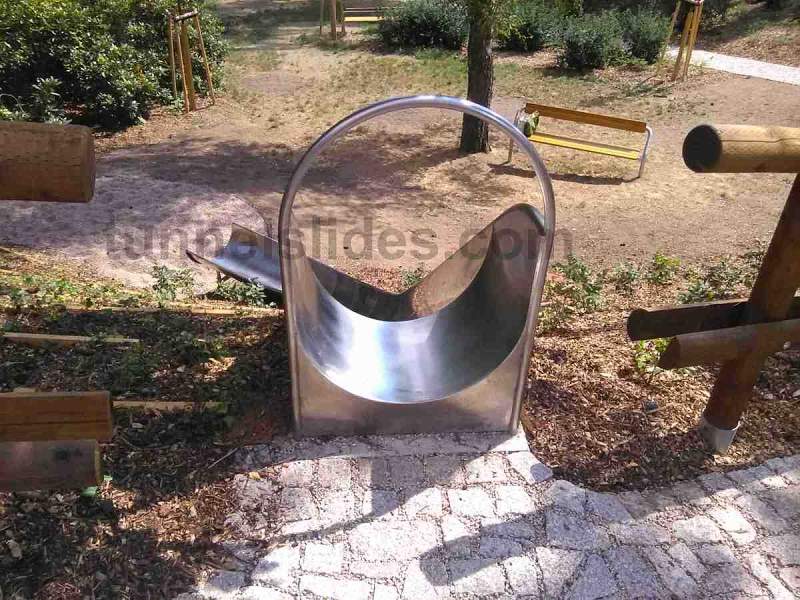

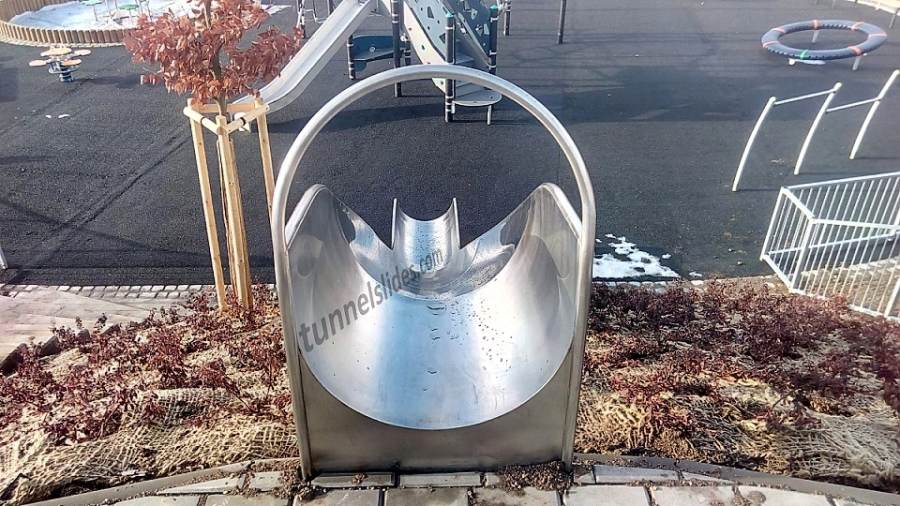

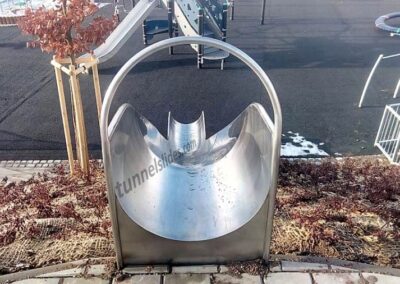

  • Side protection of the entry section for additional safety
  • Length of the slide depends on the shape and length of the slope (ideal inclination 34°)

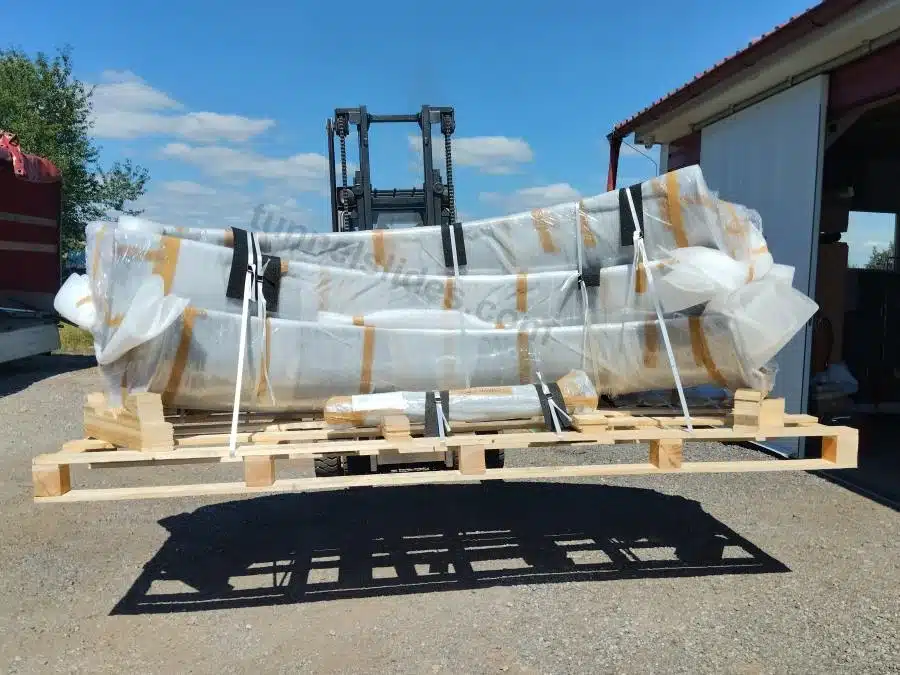

  • Longer slides are divided into segments to facilitate handling and installation
  • TOP quality in all details – welded exclusively by TIG (WIG) technology
  • Certified by TÜV for compliance with EN 1176-1 and EN 1176-3

Material:

  • Food grade stainless-steel, grade 1.4301 (AISI 304)
  • Sheet thickness: 2,0 mm (0,078 in)
  • Handles: stainless-steel, Ø 30 mm (1,18 in)
  • Connecting flanges: stainless-steel, thickness 8 mm (0,315 in)
  • Fasteners: stainless-steel

Recommended age: 3+

Catalogs of slides, tunnel slides or water slides.

Here you can choose the shape, height, curves ….

View catalogs
Catalogues

Ready for a TREND slide?

Let us know details of the slide of your dreams. We will get back to you shortly with an indicative offer.
