Curved - Hill - Embankment slides

Stainless steel hill slides

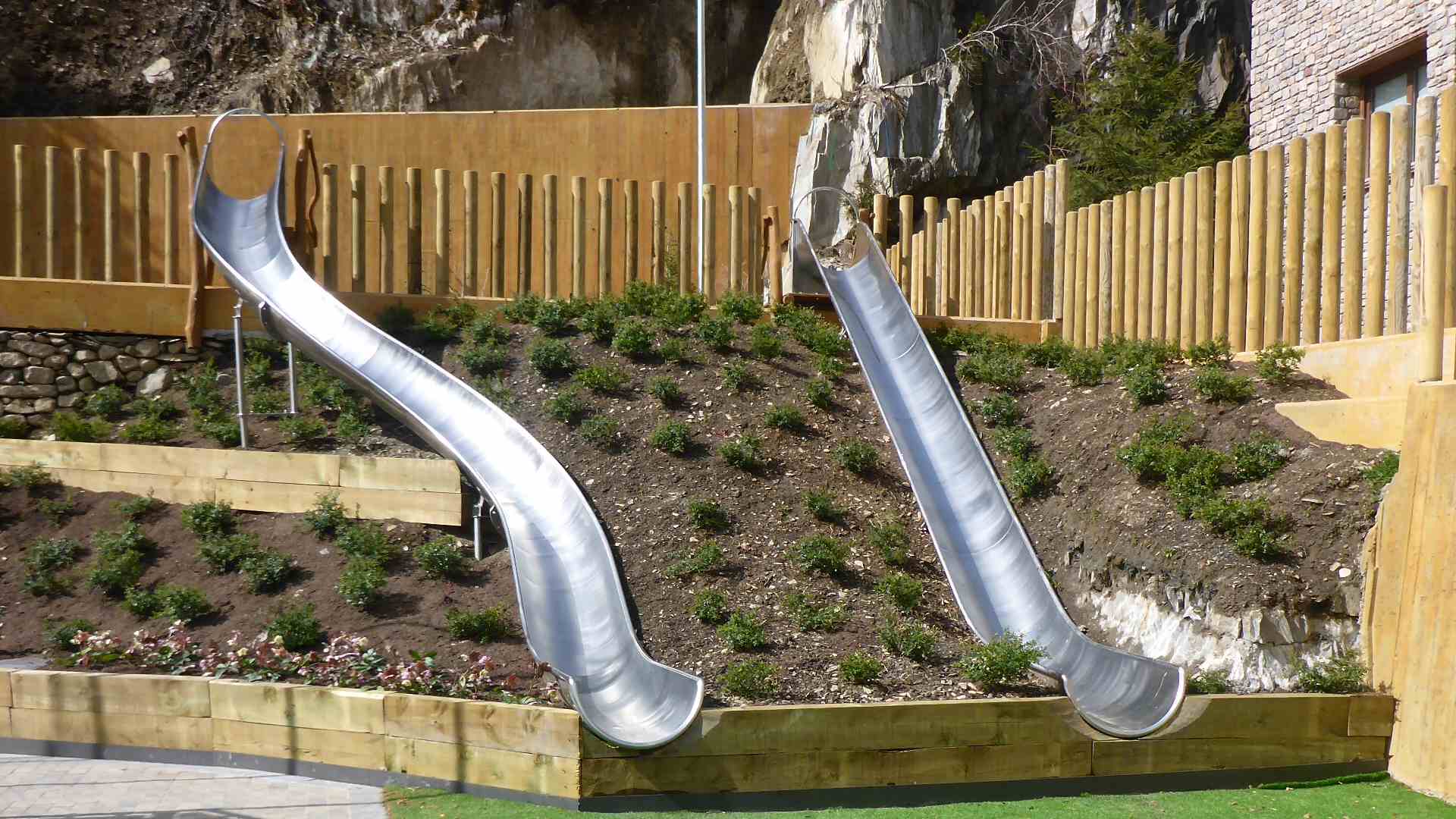

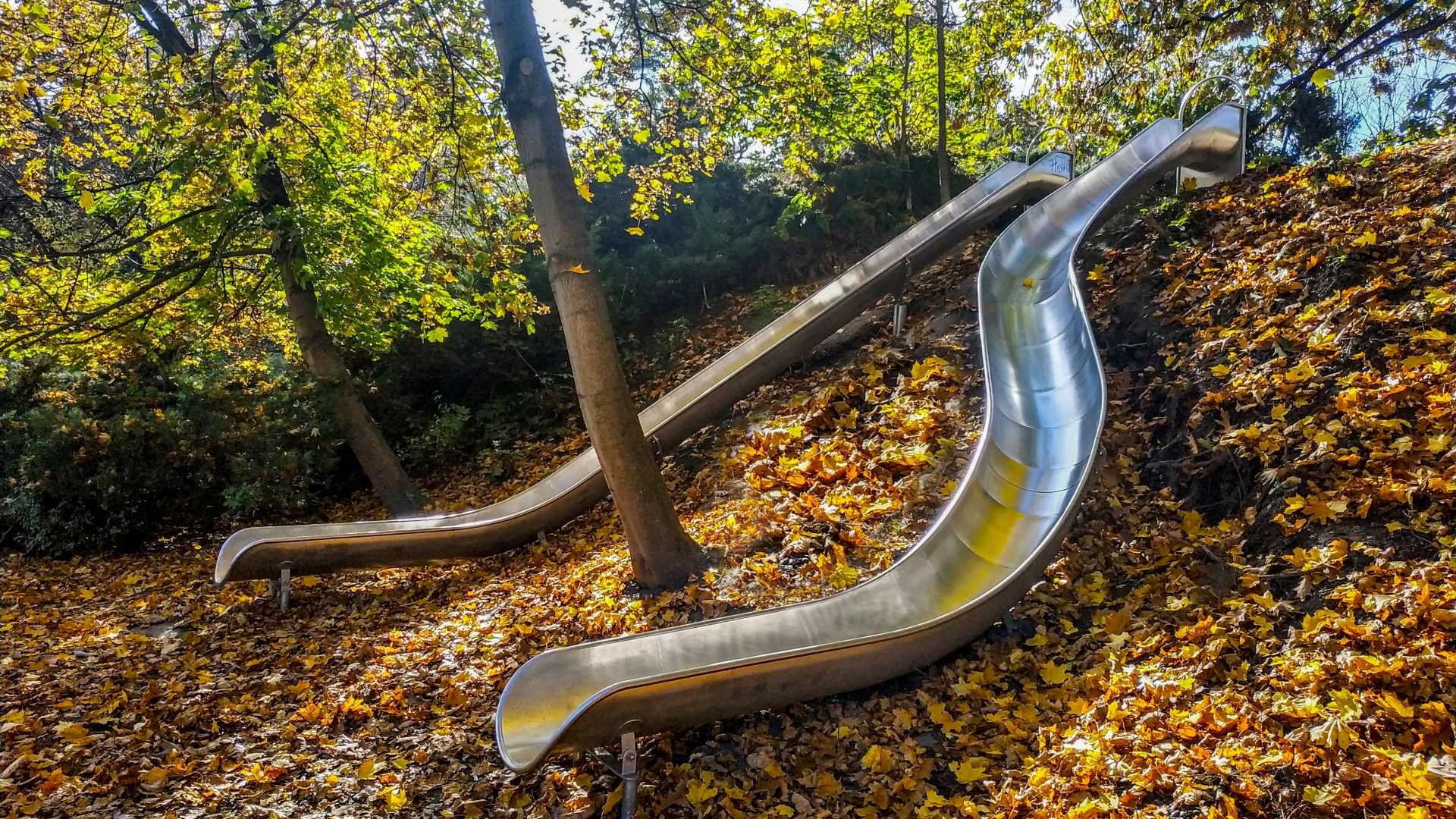

Hill / Curve / Embankment slides are always produced as individual site-specific projects. Slides are always modeled according to customer's specific requirements, local conditions, as well as shape and length of the slope. The basic design elements are based on our TREND slides.

Our stainless steel hill slides allow for universal applications and use!

A unique connection of the side protection, the boarding section length, the safety bar and the safe U-shaped cross-section offers the following:

Wide range of applications:

various playground assemblies
independent instalation on an embankment
instalation on an embankment with a landing
on both metal and wooden frames
on rope elements

Basic parameters:

width 600 mm
U-shaped cross section for additional safety
Tilted as a bobsled track
Length of the slide depends on the shape and length of the slope
The slide may be divided into multiple parts, if needed
TOP quality in all details - welded exclusively by the TIG method

Material:

Food grade stainless steel 1.4301 (AISI 304)
Shell: stainless steel, thickness 2 mm
Handles: stainless steel, Ø 25 mm or 30 mm
Fasteners - stainless steel
Connecting flanges - stainless steel , thickness 8 and 10 mm

Recommended age: 3+

We deliver the slides:

with installation instructions, or
with certified installation

We produce and ship the slides directly from our facility.

The slides' construction complies with EN 1176-1 and EN 1176-3 norms
