Water slide Aqua Trend (half-tube) with a ladder

Video

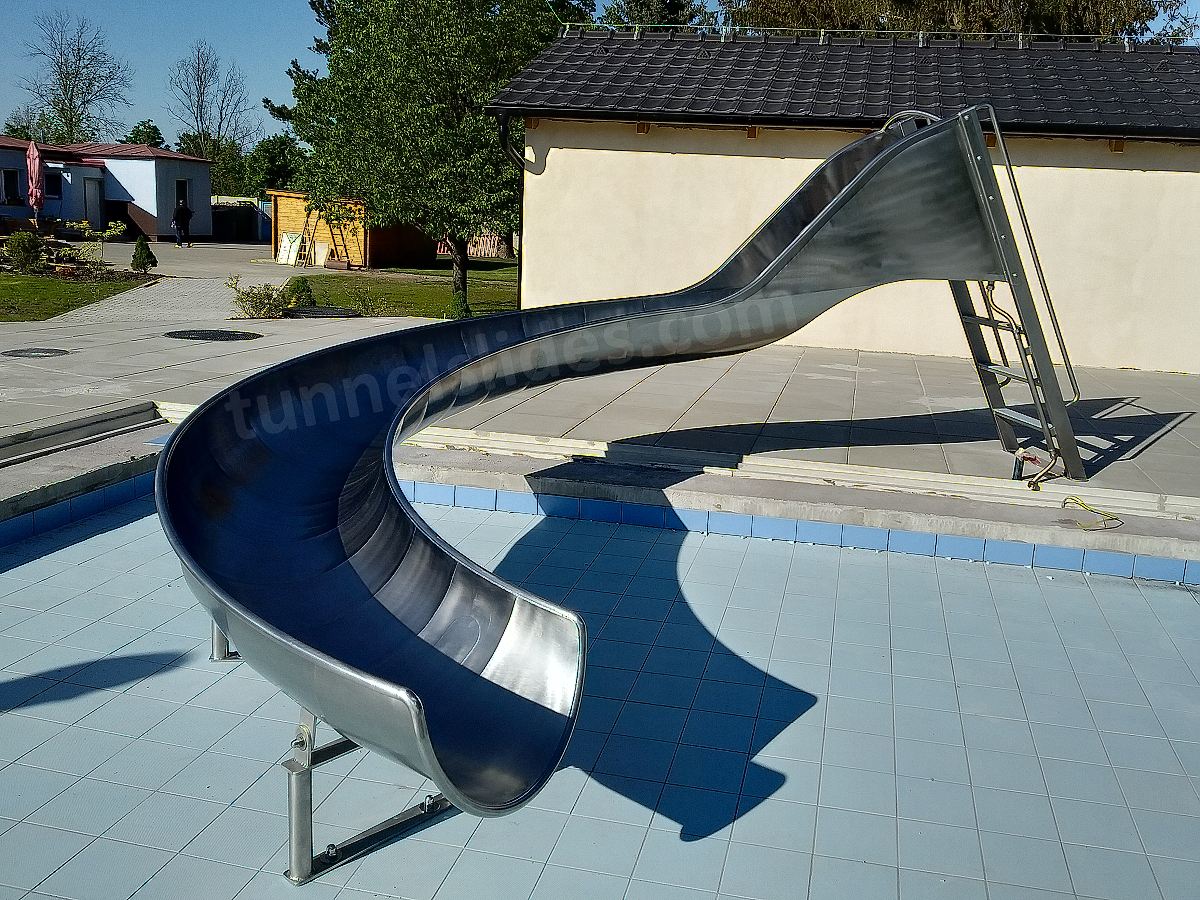

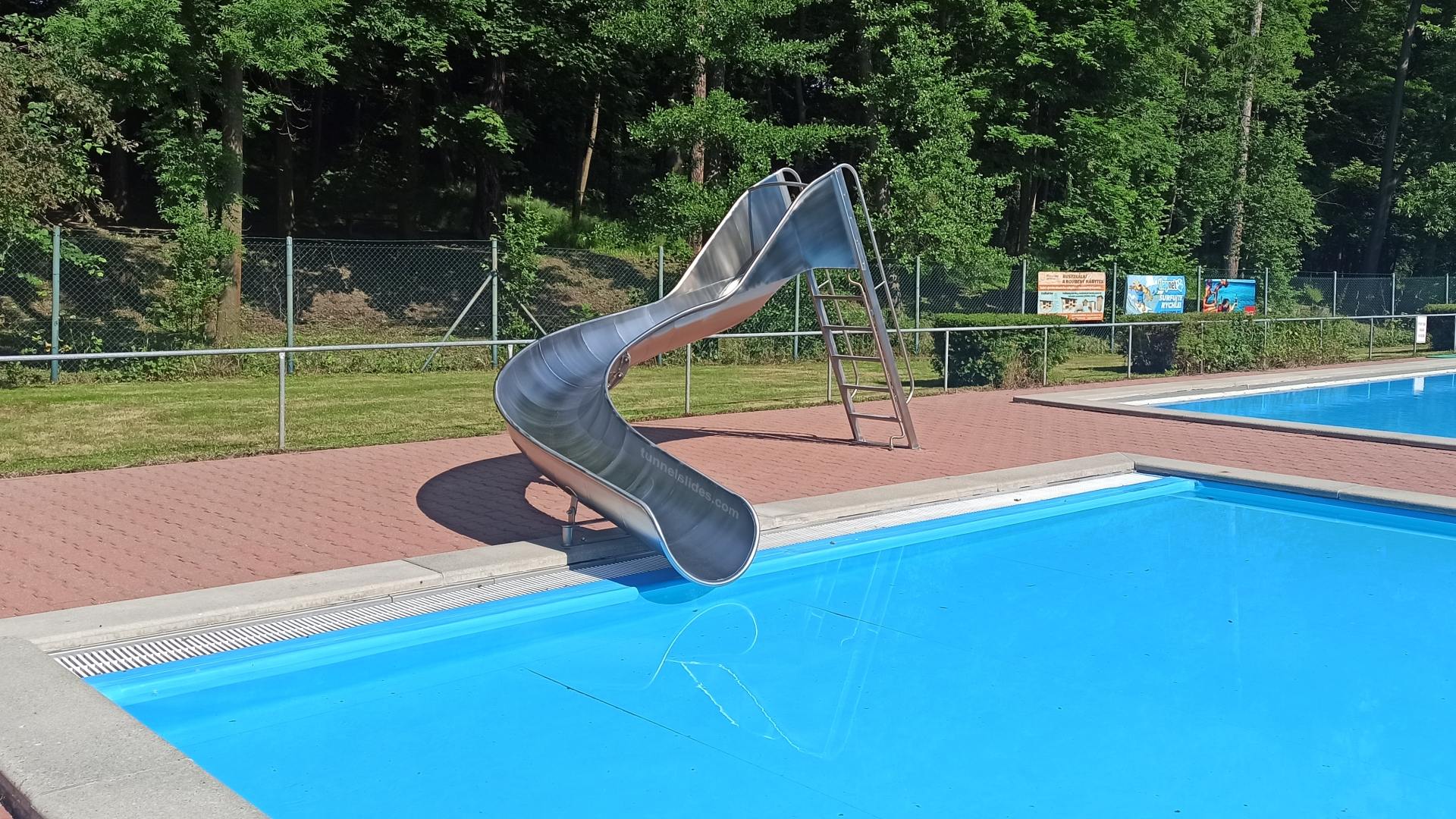

Stainless-steel water slides – Aqua Trend with a ladder

Custom-made or standard open half-tube slides with “U”-shapped cross-section, with an integrated ladder, which can be used as a self-standing element.

Stainless-steel water slides – Aqua Trend with a ladder

TOP quality in all details – welded exclusively by TIG (WIG)technology
The slide has a “U”-shape in cross-section and is tilted in turns for enhanced safety
The surface does not get overheated by the sun, as it is permanently cooled down by water
A safety bar is placed over the starting segment
Versions for both the private and public sector
Water spout with 1″ connection for a garden hose / pipe / water pump

Material:

For natural water sources: stainless steel, Wrst. Nr. 1.4301 / AISI 304 / V2A
For salty water and swimming pools chemistry: stainless steel, Wrst. Nr. 1.4404 / AISI 316L / V4A
Sheet thickness: 2,0 mm (2,5 mm on demand)
Connecting flanges: stainless-steel, thickness 8,00 mm
Safety bar: stainless steel pipe, min. Ø 25 mm
Width: 600 mm
Models for public use can be certified by TÜV in compliance with EN 1069-1 and 2

Configuration of the slide:

Straight or with turns (15°-180°)
Several standard platform heights
Possibility of customized platform height
Public sector (inclination according to the safety norm)
Private sector (inclination according to the client’s wish, taking into account safety and the safety norm) – the slide is shorter and thus steeper, quicker and cheaper

Configuration of the ladder:

Several standard platform heights
Possibility of customized platform height
Steps made from HPL anti-slip board (Play Tec – softened PE material + structural stainless steel elements)
robust construction with safety handles, all stainless steel
removable from the slide (e.g. for winter)
